LVDS to HDMI board

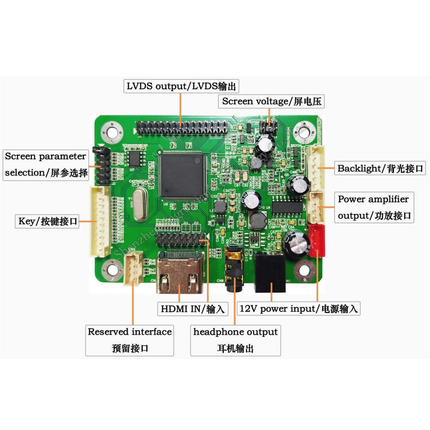

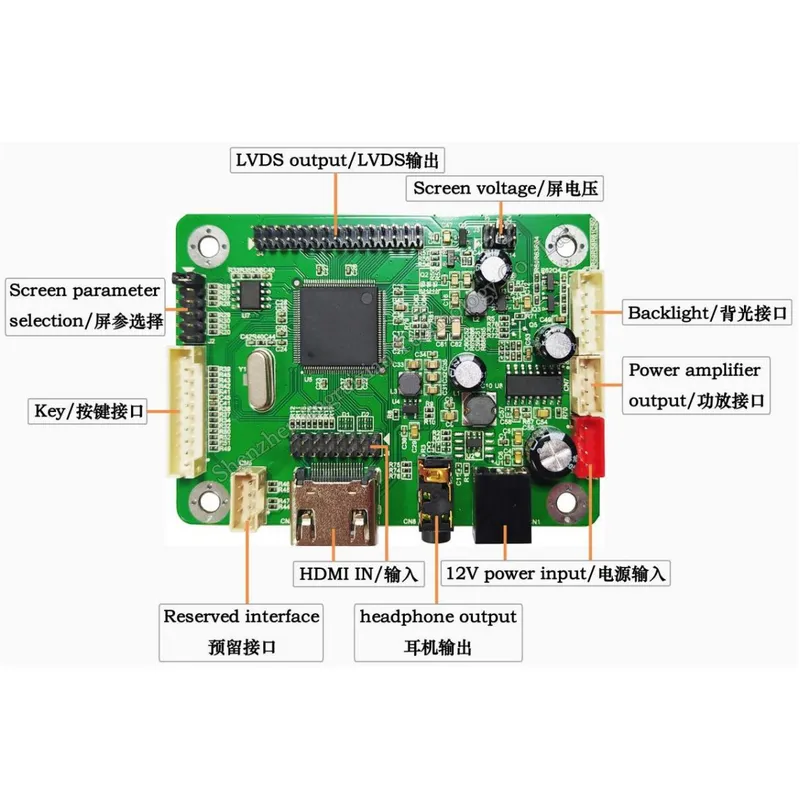

ZHAOXIN LVDS To HDMI Adapter Board with LVDS Cable

Model NO.: ZX_H2LVDS513_V1.0


It is a multi-function display driver board combines 1 HDMI1.4 input interface, supports 2 port LVDS output up to 186MHz, supports headphone output  and 3 watts dual channel audio amplifier output.


This board also supports multi panel selection so you can driver other panel without change software.

I²C or UART is also supported if you need.


Description

  • Support resolution:

800*600,1024*768,1280*800,1280*1024,1366*768,1400*900,1600*900,1680*1050,1920*1080


  • Temperature:

Operating: 0℃ to +40℃

Store: 0℃ to +40℃


  • Humidity

Operating: 10% to 90% (non-condensing)

Store: 5% to 95% (non-condensing)
