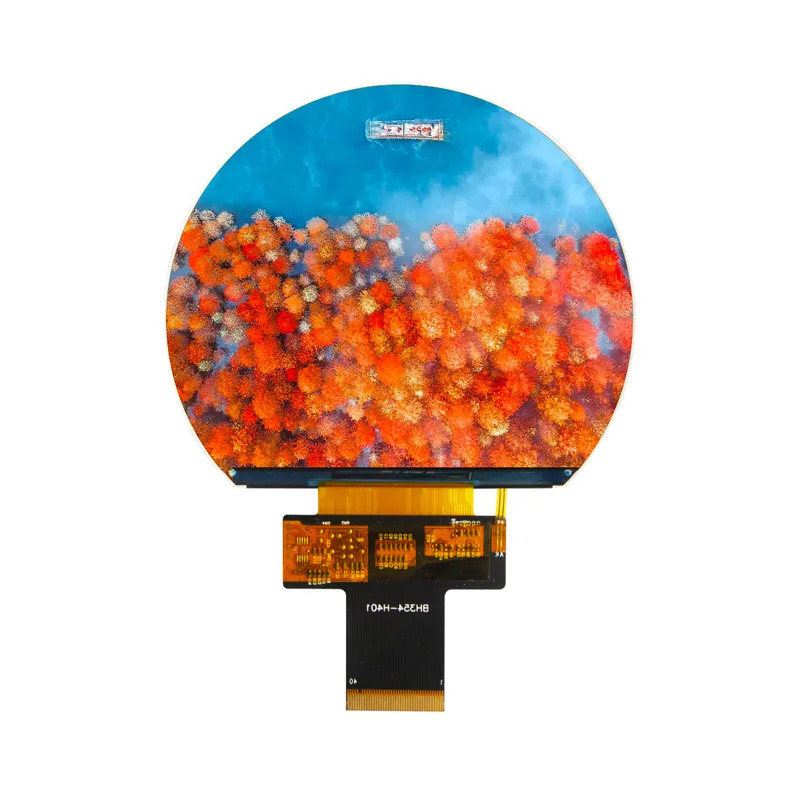

3.54 inch 800x640 circular TFT LCD display

3.54 inch 800x640 circular TFT LCD display

Model No.: ZX354TFT01B

ZX354TFT01B is a transmissive type color active matrix liquid crystal

display(LCD) which uses amorphous thin film transistor(TFT) as switching devices.

This product is composed of a TFT LCD panel, a drive IC, a RTP,a FPC and a

LED-backlight unit.

The active display area is 3.54” inches diagonally measured

and the native resolution is 800*RGB*640.Features of this product are listed in the

following table

Description

	Feature		Spec
Characteristics	Size		3.54 inch
	Resolution		800*640
	Interface		3SPI+24RGB
	Connect type		0.5 pitch 40pin
	Color Depth		262k
	Technology Type		-
	Display Spec. Pixel pitch(mm)		0.1125*0.1125
	Pixel Arrangement		R.G.B. Vertical Stripe
	Display mode		Normally black
	Driver IC		FL5893DA
	Surface Treatment		-
	Viewing angle		ALL
Machanical	Gray Viewing Direction		Free
	LCM (MM)		97.683.84.0
	Active Area (mm)		90.0*72.0
	With/without TSP		without
	Brightness		800cd/m
	Back light		12 white LED 18V180mA
