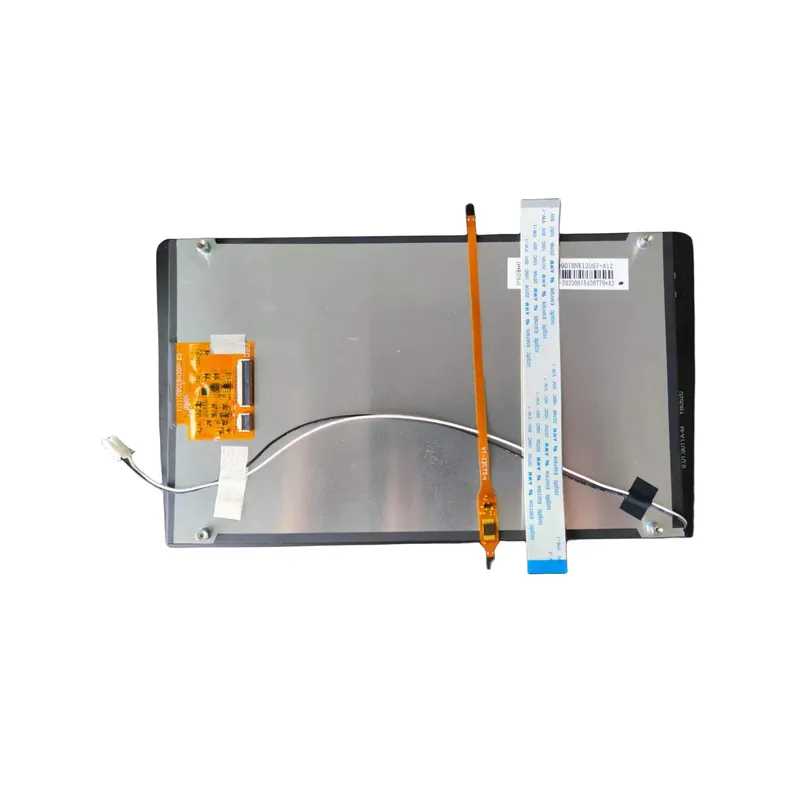

9 inch 720x1280 IPS TFT LCD display for vehical motocycle

9 inch 720x1280 IPS TFT LCD display for vehical motocycle car

Model No.: ZX900TFTIN01B


ZX900TFTIN01B is model a color active matrix thin film transistor (TFT) liquid crystal display

(LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a

driving circuit and a back light system. This TFT LCD has a 9 (16:9) inch diagonally measured active display area

with 720p(720 horizontal by 1280 vertical pixel array) resolution. The TFT-LCD panel used for this module is

adapted for a low reflection and higher color type.


inquiry

Description

Features

 4 lanes MIPI Interface

 Data enable signal mode

 8-bit color depth,display 16.7M colors

 Low driving voltage and low power consumption

 ROHS Compliant




Feature
Spec







Characteristics
Size
9 inch
Resolution
720*1280
Interface
--4 Lanes MIPI Interface
Connect type
-
Color Depth
262k
Technology Type
-
Display Spec. Pixel pitch(mm)
0.1125*0.1125
Pixel Arrangement
R.G.B. Vertical Stripe
Display mode
Normally black
Driver IC
FT8201AB
Surface Treatment
IPS film
Viewing angle
ALL



Machanical
Gray Viewing Direction
Free
LCM (MM)
125.74*210.04*5.03
Active Area (mm)
114.05*196.61
With/without TSP
with
Brightness
-
Back light
Single LED (Side-Light type)
