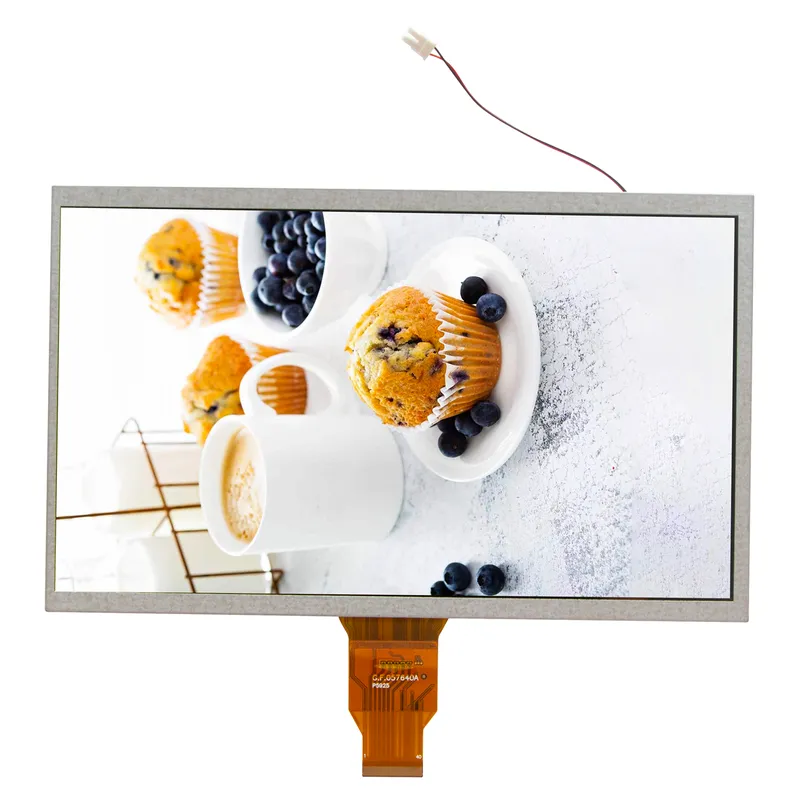

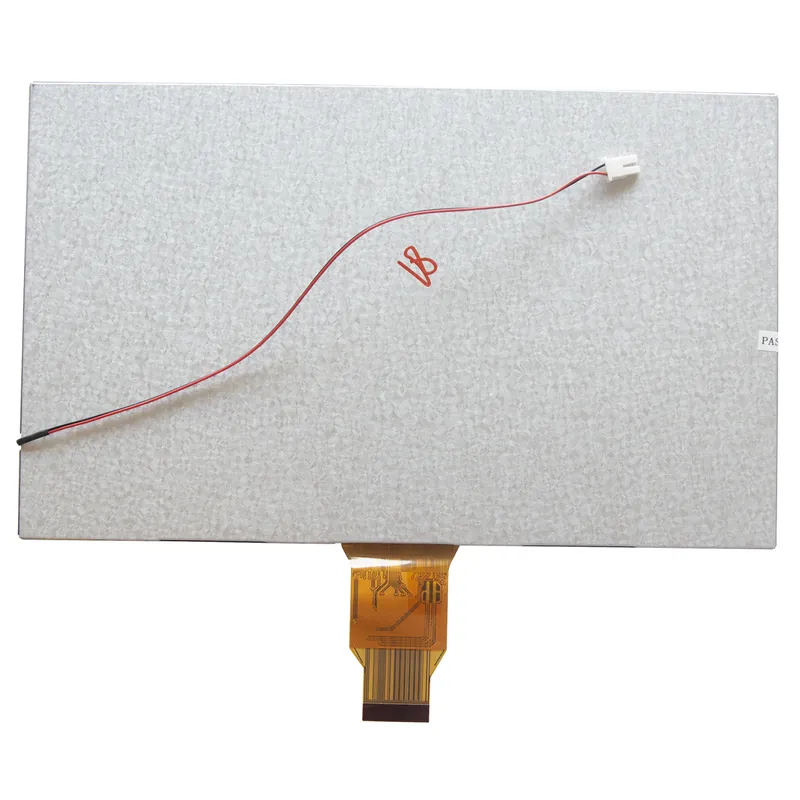

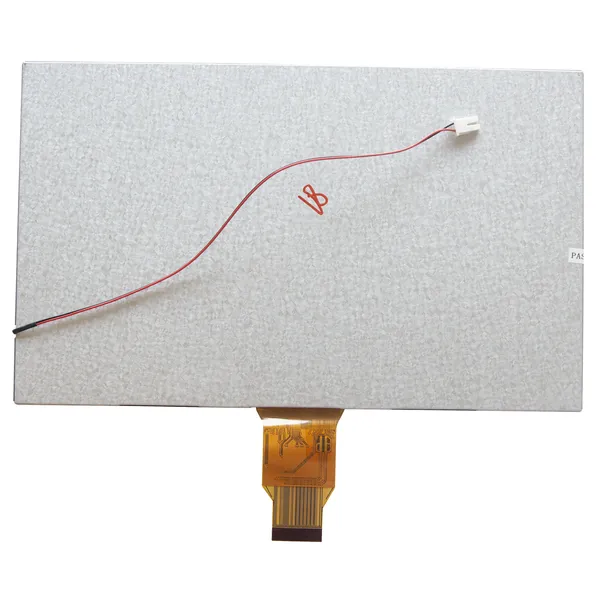

10.1“ inch LVDS Interface TFT LCD Display 1024x600

Model No.: ZX1010TFTL01A

This display module ZX1010TFTL01A is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) without a capacitance touchscreen .This module is composed of a TFT LCD module, a backlight unit. The resolution of a 10.1-inch contains 1024(RGB)*600 dots and can display up to 16.2M colors.

inquiry

Description

	Feature	Spec
Characteristics	Size	10.1 inch
	Resolution	1024*600
	Interface	LVDS
	Connect type	Connector
	Color Depth	16.7M
	Technology Type	a-Si TFT
	Display Spec. Pixel pitch(mm)	0.2175*0.2088
	Pixel Configuration	R.G.B. Vertical Stripe
	Display mode	Normally white, Transmissive
	Viewing Direction	12 O'clock
	Gray scale direction	6 O'clock
	LCM (mm)	2351434.6
	Active Area（mm)	222.72*125.28
	LED Numbers	42 LEDs


10.1“ inch LVDS Interface TFT LCD Display 1024x600

Description

send inquiry to us

Related Product

7 inch 1024x600 TFT LCD display with touch panel

3.5 Inch 320x240 RGB TFT IPS Display TFT LCD Module

2.4 inch 240x320 SPI/MCU/RGB interface IPS TFT LCD display

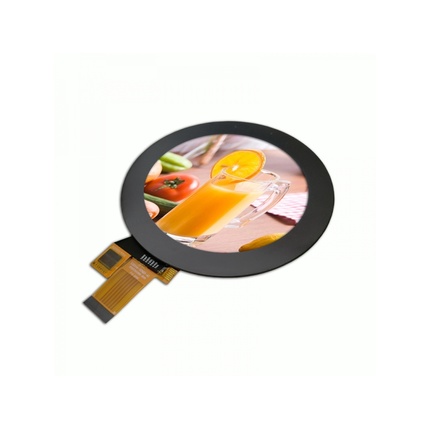

ZHAOXIN 3.4 inch 800*800 circular TFT LCD screen with 30pin MIPI interface
