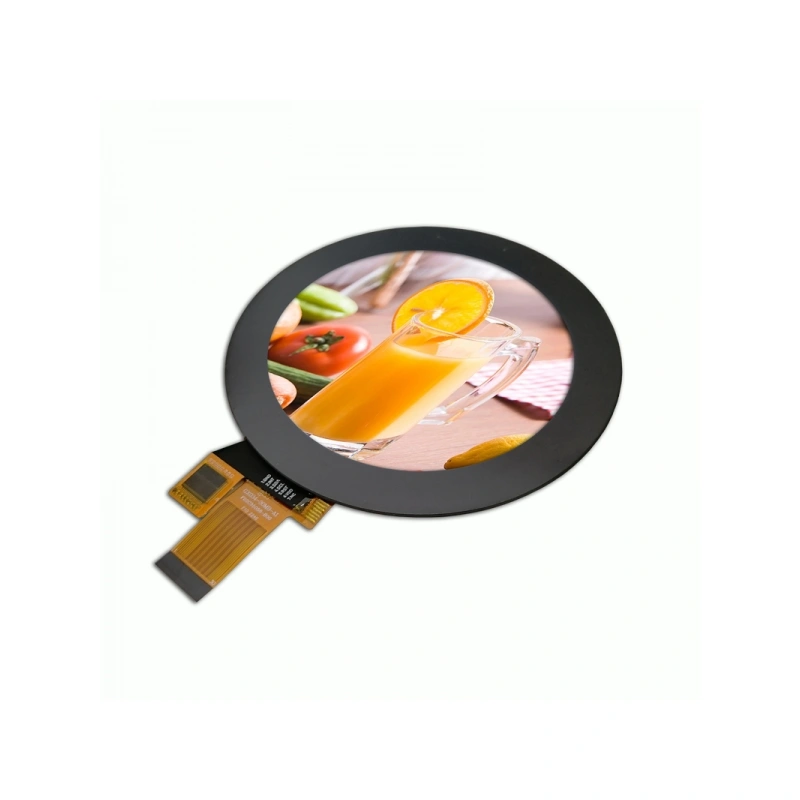

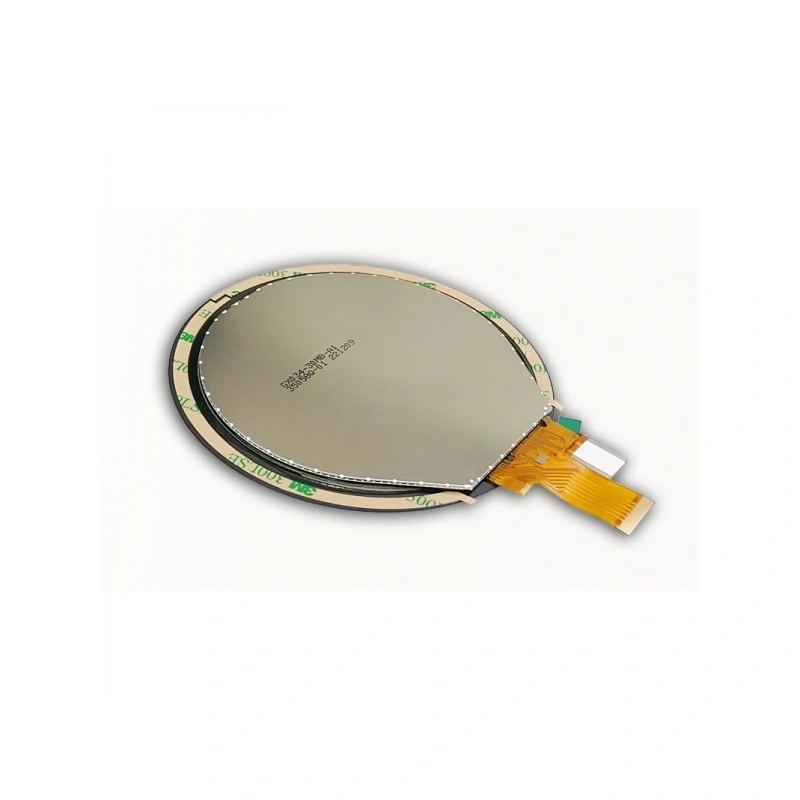

3.4 inch circular LCD screen with 30pin MIPI

ZHAOXIN 3.4 inch 800*800 circular TFT LCD screen with 30pin MIPI interface

Model No.: ZX340TFT03A

This display module ZX340TFT03A is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) without a capacitance touchscreen .This module is composed of a TFT LCD module, a backlight unit. The resolution of a 3.4-inch contains 800(RGB)*800 dots and can display up to 16.7M colors.

Mainly Product Applications: Handheld devices, POS device, Smart Home, Remote Control device, AI Robot, Kids Toys, ADAS, Fireplace, Automotive displays

inquiry

Description

	Feature	Spec
Characteristics	Size	3.4 inch
	Resolution	800*800
	Interface	MIPI
	Connect type	-
	Color Depth	16.7M
	Technology Type	a-Si
	Display Spec. Pixel pitch(mm)	36.5*109.5
	Pixel Configuration	R.G.B stripe
	Display mode	Normally black
	Driver IC	TBD
	Surface Treatment	-
	Viewing angle	ALL
Machanical	Gray Viewing Direction	Free
	LCM (MM)	94.996.952.22
	Active Area (mm)	87.6*87.6
	With/without TSP	without
	Weight(g)
	LED numbers	-

ZHAOXIN 3.4 inch 800*800 circular TFT LCD screen with 30pin MIPI interface
