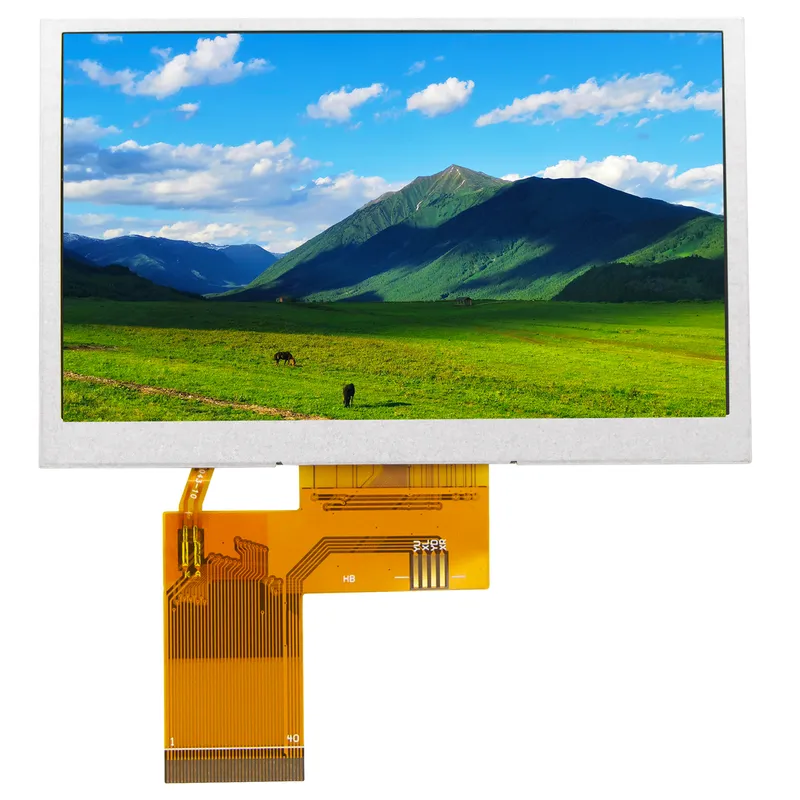

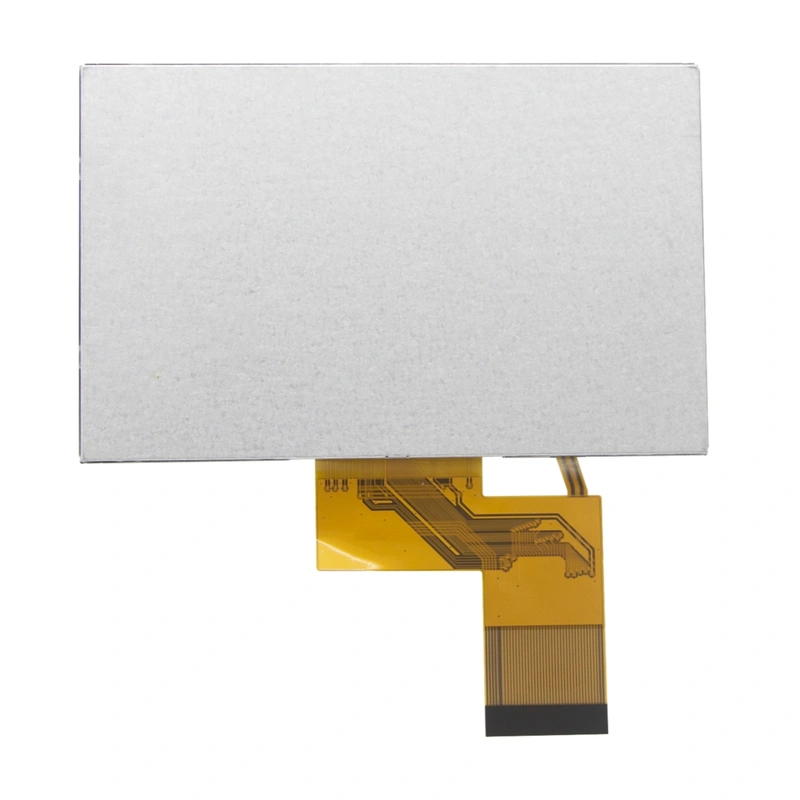

4.3“ inch TFT LCD Display 800x480 IPS TFT LCD Display

Model No.: ZX430TFT06B

This display module ZX430TFT06B is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) without a capacitance touchscreen .This module is composed of a TFT LCD module, a backlight unit. The resolution of a 4.3-inch contains 800(RGB)*480 dots and can display up to 16.7M colors.

inquiry

Description

	Feature	Spec
Characteristics	Size	4.3 inch
	Resolution	800*480
	Interface	Parallel RGB 24-bit
	Connect type	Connector
	Color Depth	16.7M
	Technology Type	a-Si TFT
	Display Spec. Pixel pitch(mm)	-
	Pixel Configuration	R.G.B. Vertical Stripe
	Display mode	Normally black, Transmissive
	Driver IC	ST7262
	Contrast Ratio	300
	Luminance	-
Machanical	Gray Viewing Direction	10 O'clock
	LCM (MM)	105.567.23
	Active Area (mm)	95.04*53.856
	With/without TSP	without
	Weight(g)	TBD
	backlight type	7 chips white LED


4.3“ inch TFT LCD Display 800x480 IPS TFT LCD Display

Description

send inquiry to us
