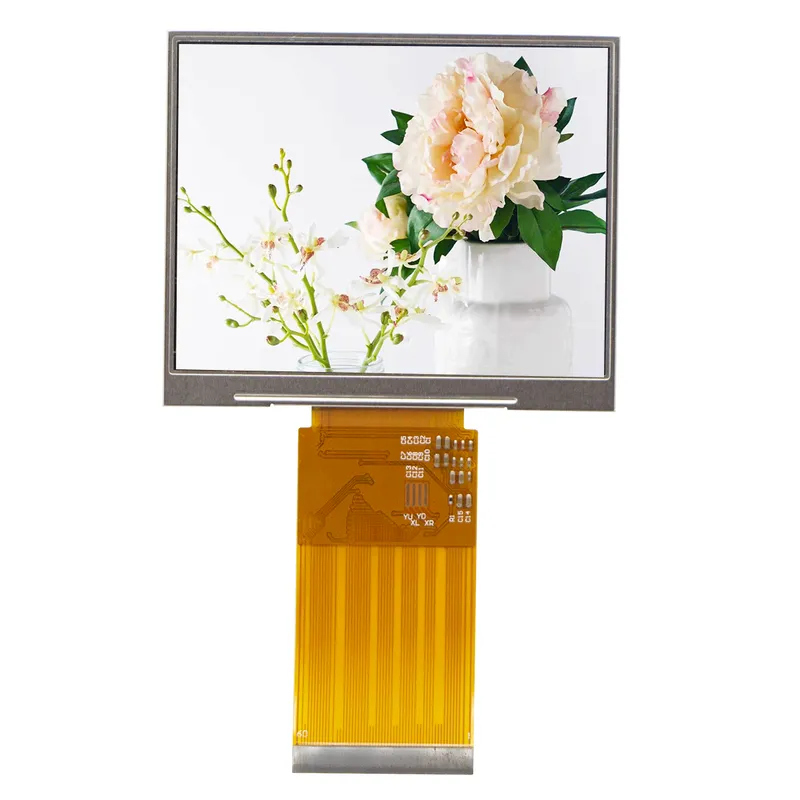

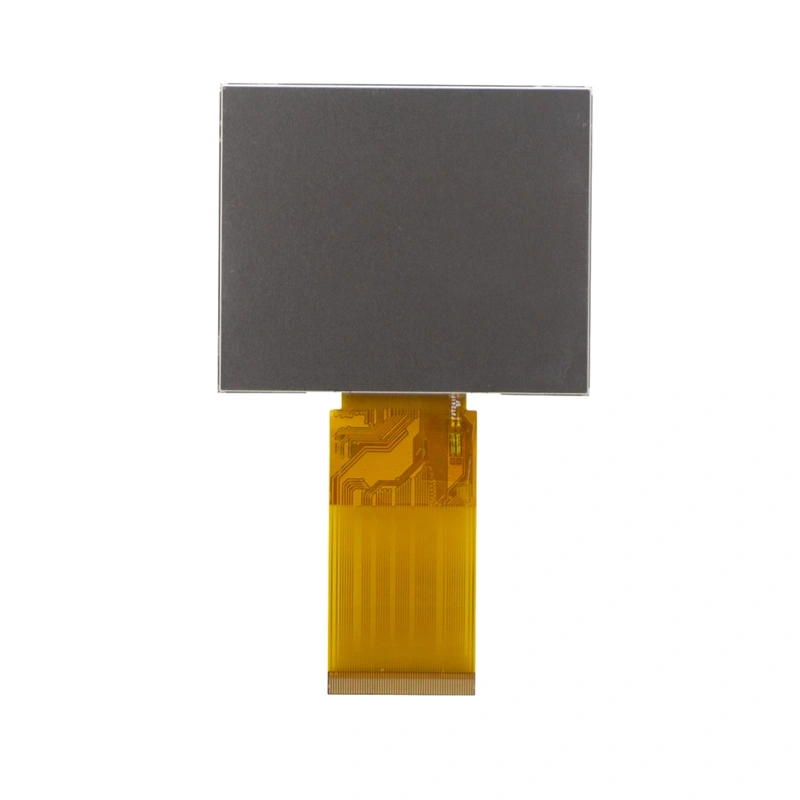

3.5 Inch 320x240 RGB TFT IPS Display TFT LCD Module

The 3.5-inch TFT LCD Display Module, epitomizes top-tier display technology with its transmissive-type color active matrix TFT LCD technology, delivering exceptional image performance. Designed to meet a wide range of application needs, this TFT module boasts several outstanding features.


With its 3.5-inch diagonal size and a resolution of 320 x 240 dots, it ensures clear viewing angles, with a view direction at 6 o'clock.


Operating temperature ranges from -20°C to +70°C, with a storage temperature range of -30°C to +80°C, making it suitable for various environmental conditions. The aspect ratio of this display module is 4:3, offering an appropriate width-to-height ratio suitable for industrial control, medical equipment, and consumer electronics applications.


Equipped with the SSD2219 TFT driver IC, it provides excellent display performance and stable operation. The TFT interface is 24-bit RGB, ensuring compatibility with high-speed data transmission for image rendering.


As a manufacturer and supplier of integrated solutions for display and touch control in the industry, ZHAOXIN has advantages in manufacturing, technology, quality and supply chain in the LCD market, providing customers with customized lcd and touch screens.


We provides customers with flexible customization services: customized screen FPC, screen IC, screen backlight, touch screen cover plate, sensor, touch screen FPC. For more details, please consult us, we will provide you with free project evaluation and project approval, and have a professional R & D personnel one-to-one project docking, welcome the demand of customers to find us!


Description

Feature
Specification
Display Spec.
3.LCD size
3.5 inch
Resolution(H*V)
320(horizontal)*240(Vertical)
Interface

18/16/9/8 bit Parallel interface

              Serial peripheral interface

Pixel configulation
R.G.B. Vertical Stripe
Display Mode
Normally white
Viewing Direction
6 O’clock
Pixel pitch (mm)
0.219*0.219
echanical Characteristics
Driver IC
SSD2219
LCD Area(mm)

76.90*64.0*3.1

Active Area(mm)

  70.08 x 52.56

With /Without TSP
without
Connector Type
Connector
LED Numbers
6 LED
colors
262K
