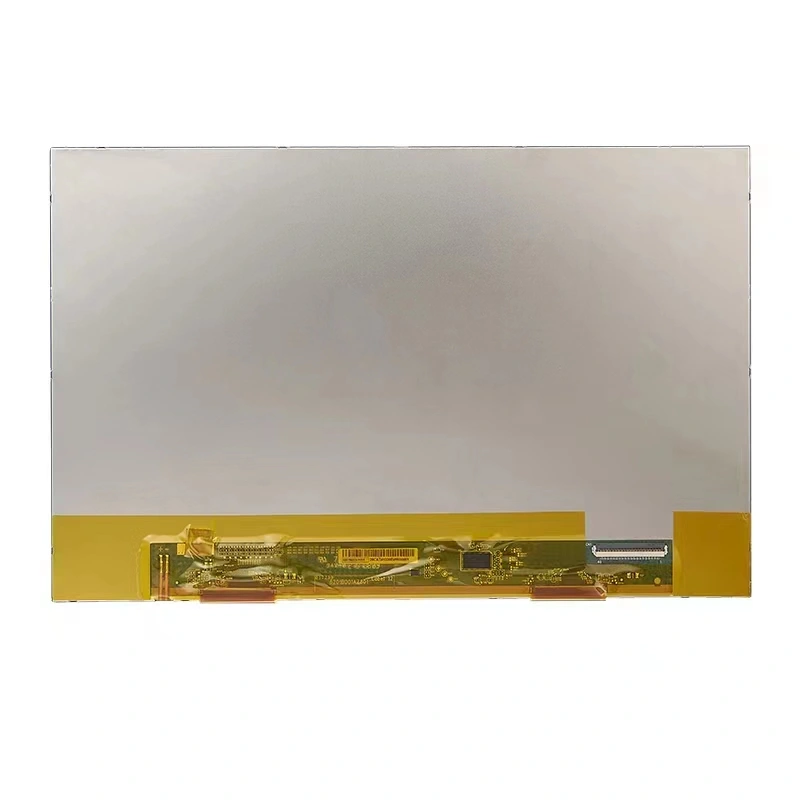

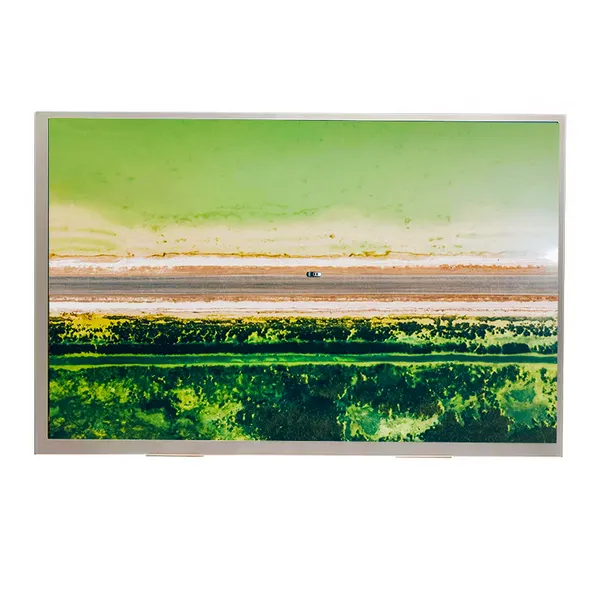

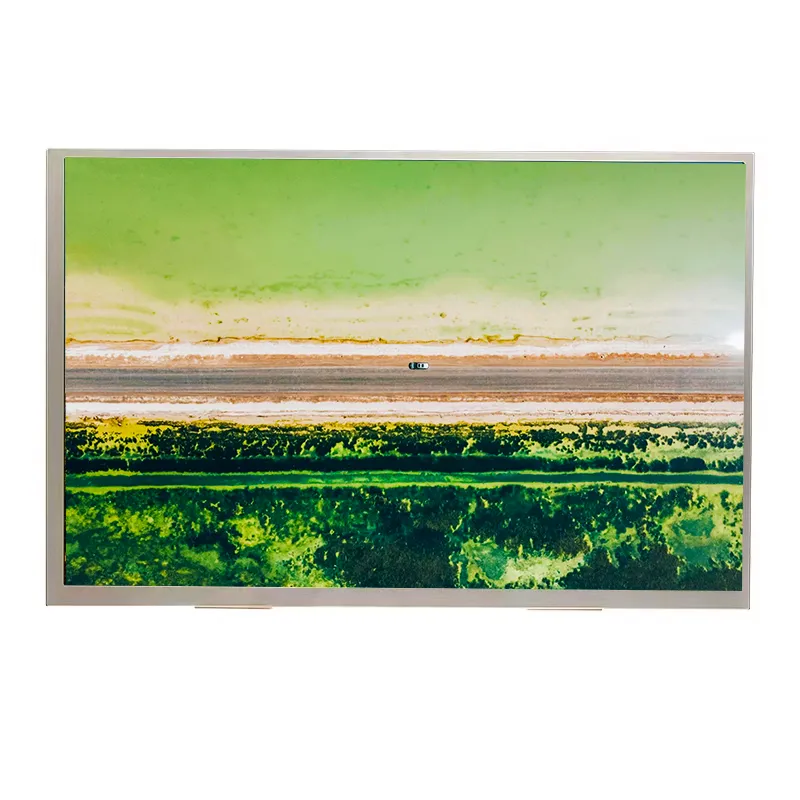

10.1“ inch TFT LCD Display 1280x800 MIPI interface with touch panel

Model No.: ZX101TFTM02B

This display module ZX101TFTM02B is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) without a capacitance touchscreen .This module is composed of a TFT LCD module, a backlight unit. The resolution of a 10.1-inch contains 1280(RGB)*800 dots and can display up to 16.7M colors.

inquiry

Description

	Feature	Spec
Characteristics	Size	10.1 inch
	Resolution	1280*800
	Interface	4 Lane MIPI Interface
	Connect type	Connector
	Color Depth	16.7M
	Technology Type	a-Si TFT
	Display Spec. Pixel pitch(mm)	0.1695*0.1695
	Pixel Configuration	R.G.B. Vertical Stripe
	Display mode	Normally black, Transmissive
	Driver IC	-
	CTP type	Cover Lens+Sensor+FPC
	CTP Driver IC	ILI2511
Machanical	Gray Viewing Direction	Free
	LCM (MM)	233.06153.74.93
	Active Area (mm)	216.96*135.6
	With/without TSP	with
	CTP interface	I2C/USB
