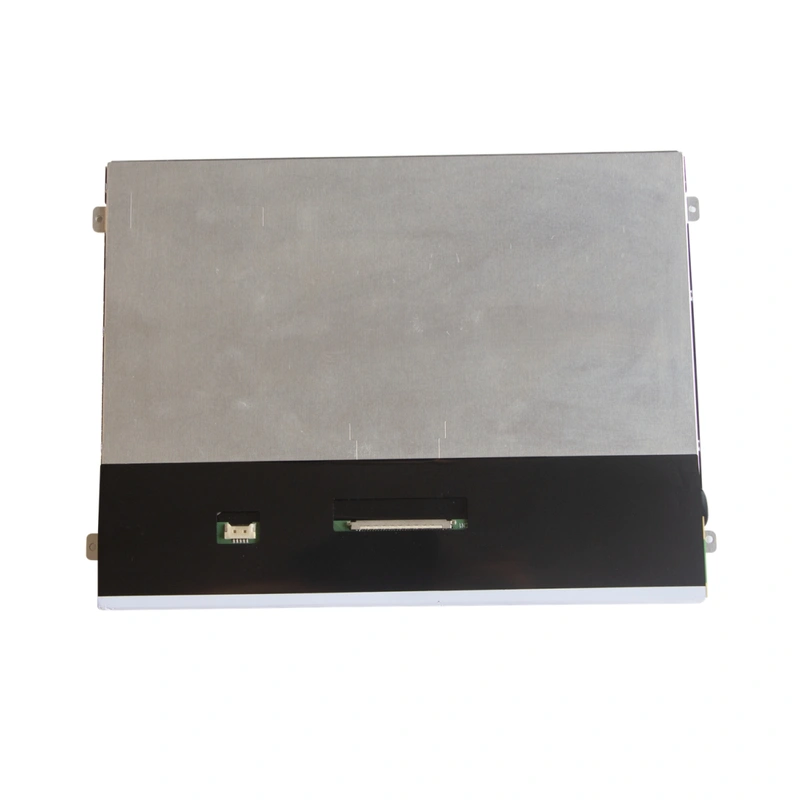

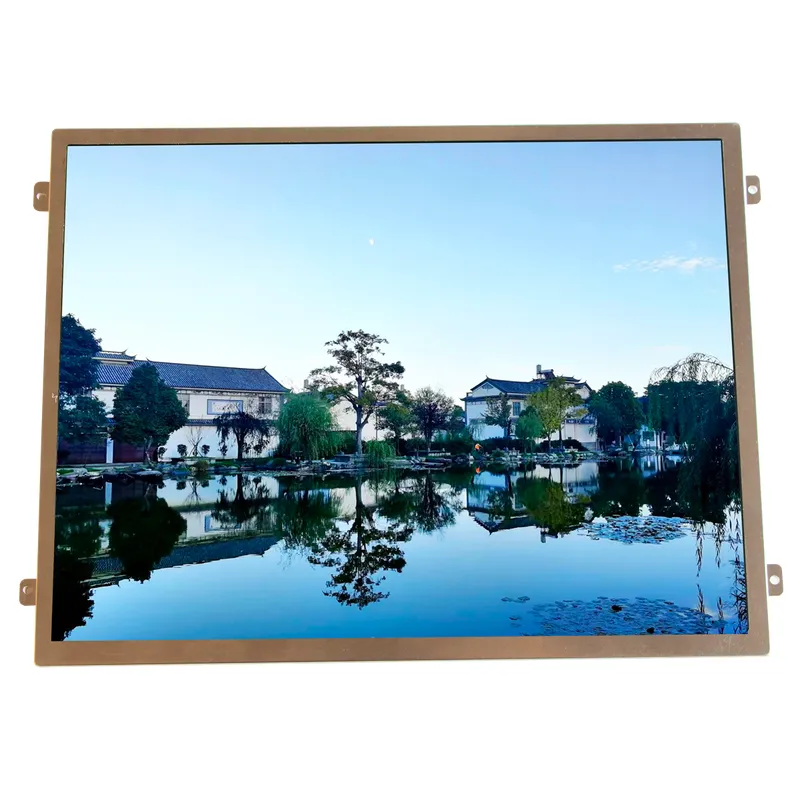

10.4“ inch TFT LCD Display 1024x768 LVDS interface

Model No.: ZX104TFTL01A

This display module ZX104TFTL01A is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) without a capacitance touchscreen .This module is composed of a TFT LCD module, a backlight unit. The resolution of a 10.4-inch contains 1024(RGB)*768 dots and can display up to 16.7M colors.

inquiry

Description

	Feature	Spec
Characteristics	Size	10.4 inch
	Resolution	1024*768
	Interface	LVDS
	Connect type	Connector
	Color Depth	16.7M
	Technology Type	a-Si TFT
	Display Spec. Pixel pitch(mm)	-
	Pixel Configuration	R.G.B. Vertical Stripe
	Display mode	Normally black, Transmissive
	Driver IC	-
	Gray Viewing Direction	Free
Machanical	Weight	-
	LCM (MM)	228.4175.45.9
	Active Area (mm)	210.43*157.82
	With/without TSP	with
	LED Numbers	36 LEDs
