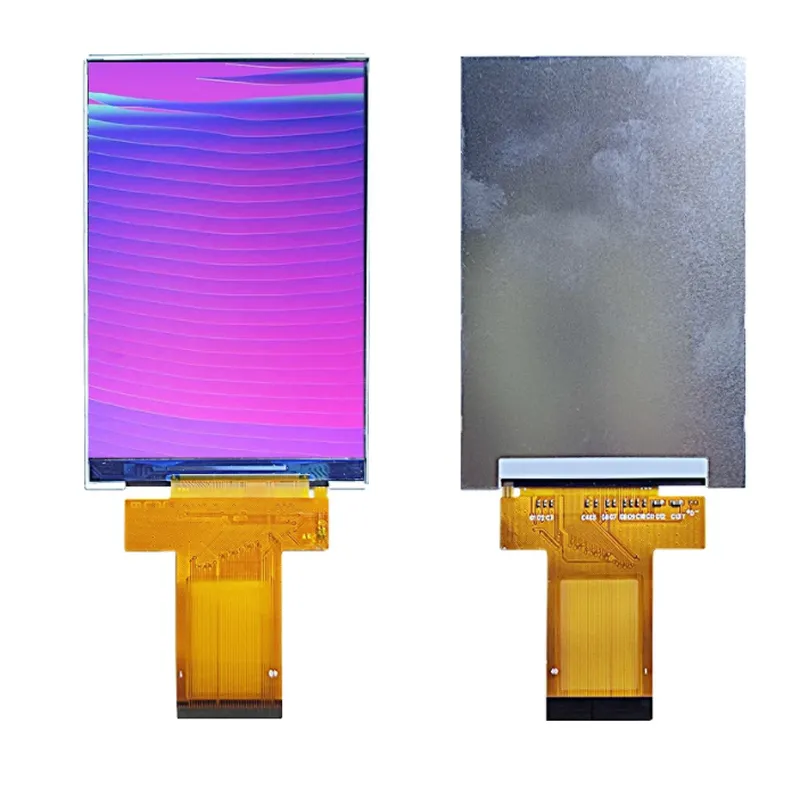

3.5“ inch TFT LCD Display 320x480 TN LCD screen for printer

Model No.: ZX350TFT04B

This display module ZX350TFT04B is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) without a capacitance touchscreen .This module is composed of a TFT LCD module, a backlight unit. The resolution of a 3.5-inch contains 320(RGB)*480 dots and can display up to 262K colors.

Mainly Product Applications: Printer, Handheld devices, Smart Home, Remote Control device, AI Robot, Kids Toys, ADAS, Fireplace, Automotive displays

inquiry

Description

	Feature	Spec
Characteristics	Size	3.5 inch
	Resolution	320*480
	Interface	16 Bit MCU And Parallel RGB interface
	Connect type	Connector
	Color Depth	262K
	Technology Type	a-Si TFT
	Display Spec. Pixel pitch(mm)	-
	Pixel Configuration	-
	Display mode	Normally white, Transmissive
	Driver IC	ILI9488
	Contrast Ratio	300
	Luminance	260
Machanical	Gray Viewing Direction	Free
	LCM (MM)	54.4682.942.05
	Active Area (mm)	-
	With/without TSP	without
	Weight(g)	110g
	LED numbers	6 LEDS in Parallel
