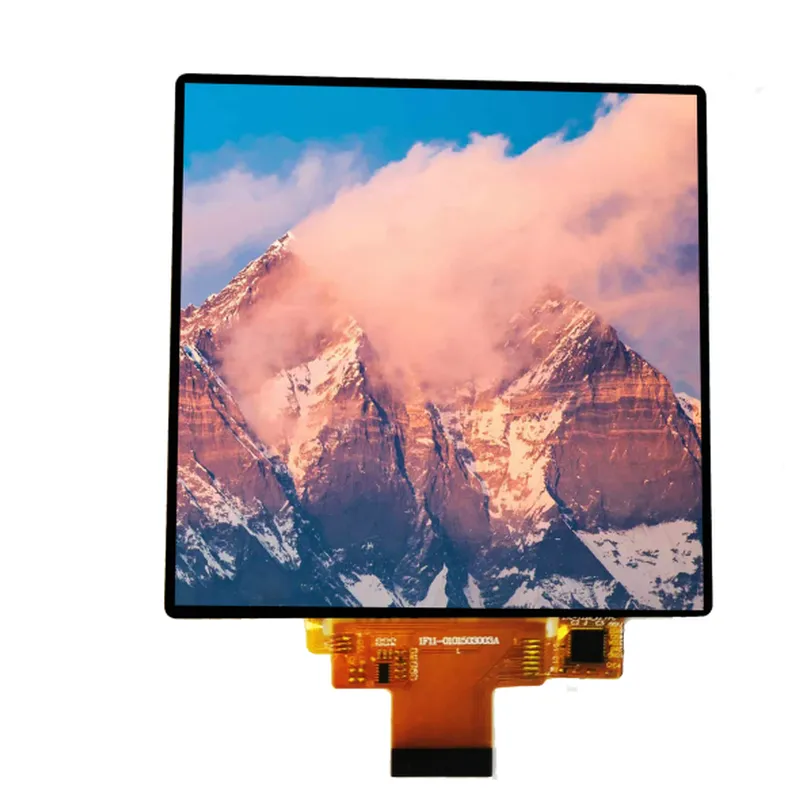

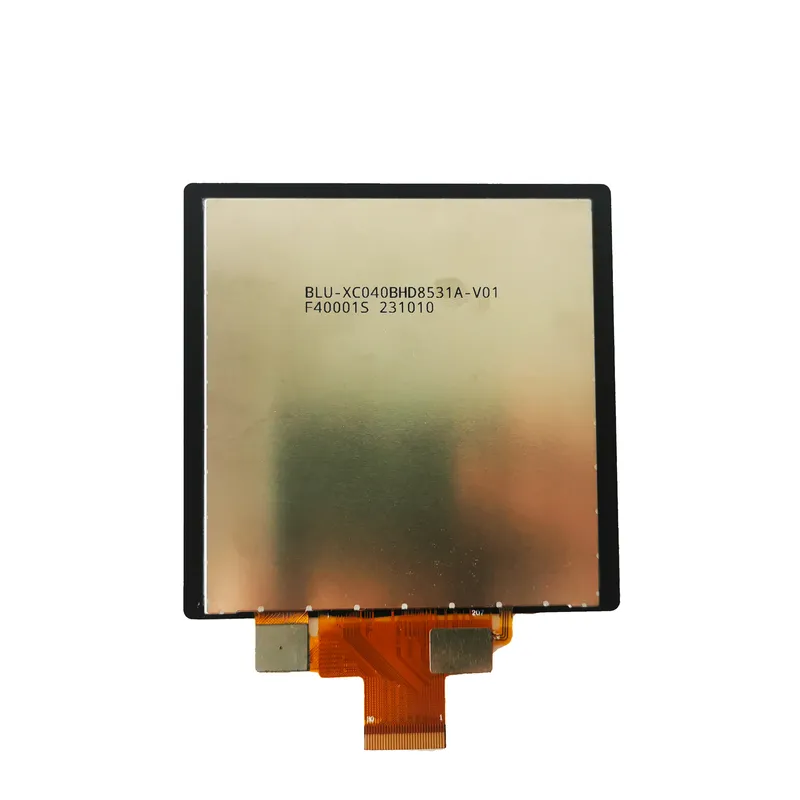

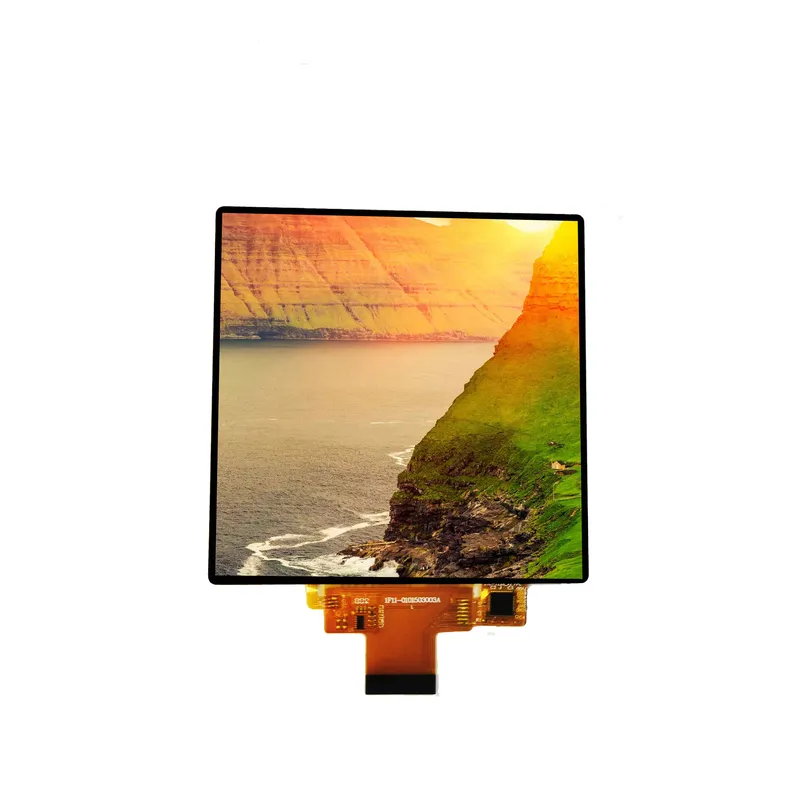

4“ inch TFT LCD Display 720x720 IPS TFT LCD Display

4“ inch square TFT LCD Display 720x720 IPS MIPI 4LINE interface with TP

Model No.: ZX400TFT01A

This display module ZX400TFT01A is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) without a capacitance touchscreen .This module is composed of a TFT LCD module, a backlight unit. The resolution of a 4-inch contains 720(RGB)*720 dots and can display up to 16.7M colors.

inquiry

Description

	Feature	Spec
Characteristics	Size	4 inch
	Resolution	720*720
	Interface	MIPI 4LINE
	Connect type	Connector
	Color Depth	16.7M
	Technology Type	a-Si TFT
	Display Spec. Pixel pitch(mm)	-
	Pixel Configuration	R.G.B. Vertical Stripe
	Display mode	Normally black, Transmissive
	Driver IC	ST7703
	Contrast Ratio	-
	Luminance	-
Machanical	Gray Viewing Direction	Free
	LCM (MM)	84842.59
	Active Area (mm)	71.93*71.93
	With/without TSP	with
	Weight(g)	TBD
	TP IC	FT6336U


4“ inch square TFT LCD Display 720x720 IPS MIPI 4LINE interface with TP
