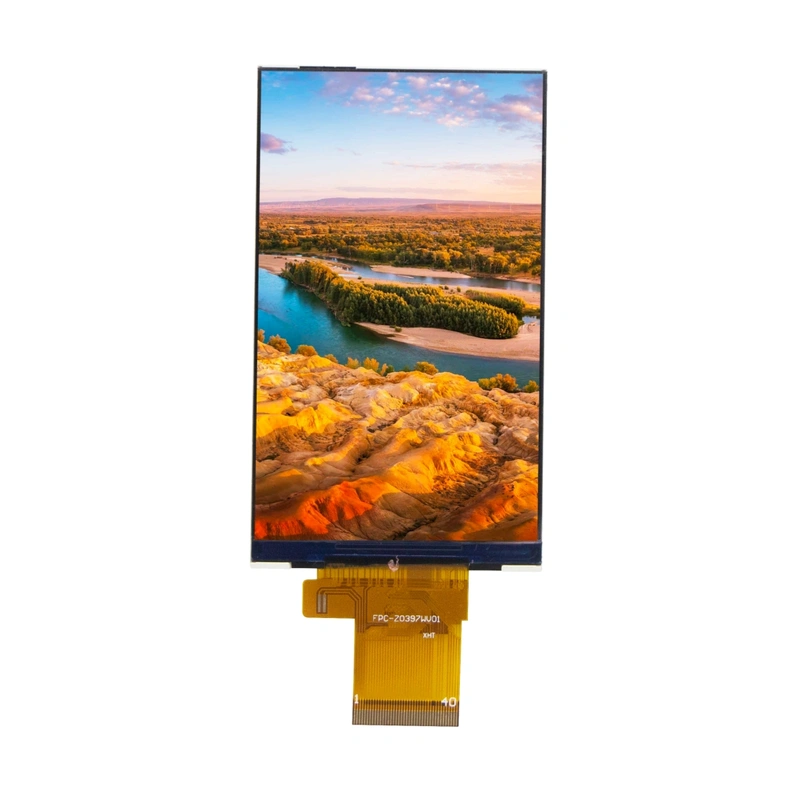

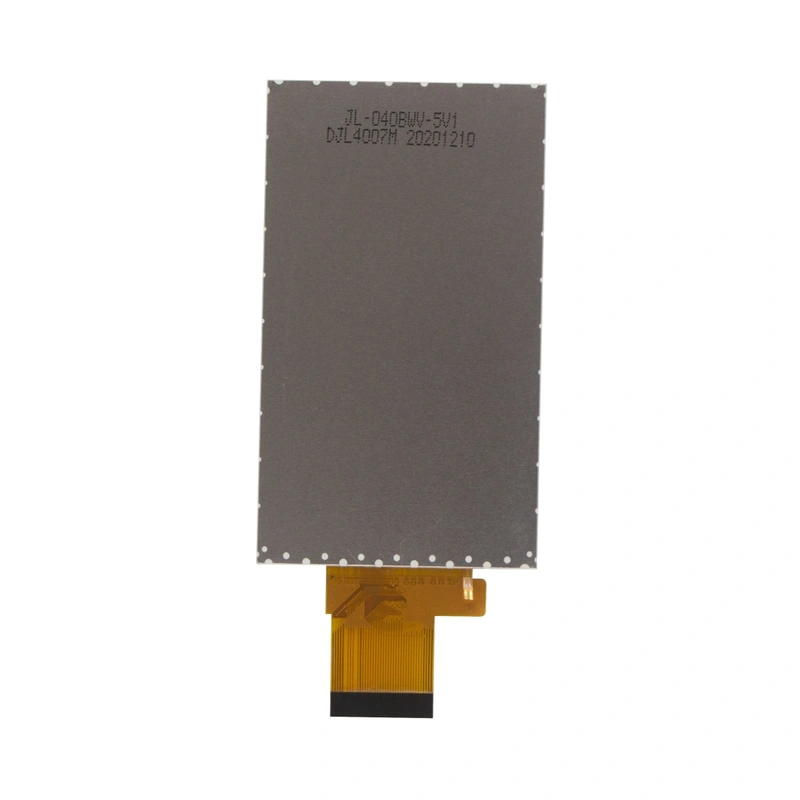

4.3“ inch TFT LCD Display 800x480 IPS TFT LCD Display

Model No.: ZX430TFT06B

This display module ZX430TFT06B is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) without a capacitance touchscreen .This module is composed of a TFT LCD module, a backlight unit. The resolution of a 4.3-inch contains 800(RGB)*480 dots and can display up to 16.7M colors.

inquiry

Description

	Feature	Spec
Characteristics	Size	3.97 inch
	Resolution	480*800
	Interface	RGB
	Connect type	Connector
	Color Depth	16.7M
	Technology Type	a-Si TFT
	Display Spec. Pixel pitch(mm)	-
	Pixel Configuration	R.G.B. Vertical Stripe
	Display mode	Normally black, Transmissive
	Driver IC	GC9305V
	Surface Treatment	HC
	Viewing direction	all
Machanical	Gray Viewing Direction	Free
	LCM (MM)	57.1496.852.15
	Active Area (mm)	51.84*86.4
	With/without TSP	without
	Weight(g)	TBD
	backlight type	8 LEDs
