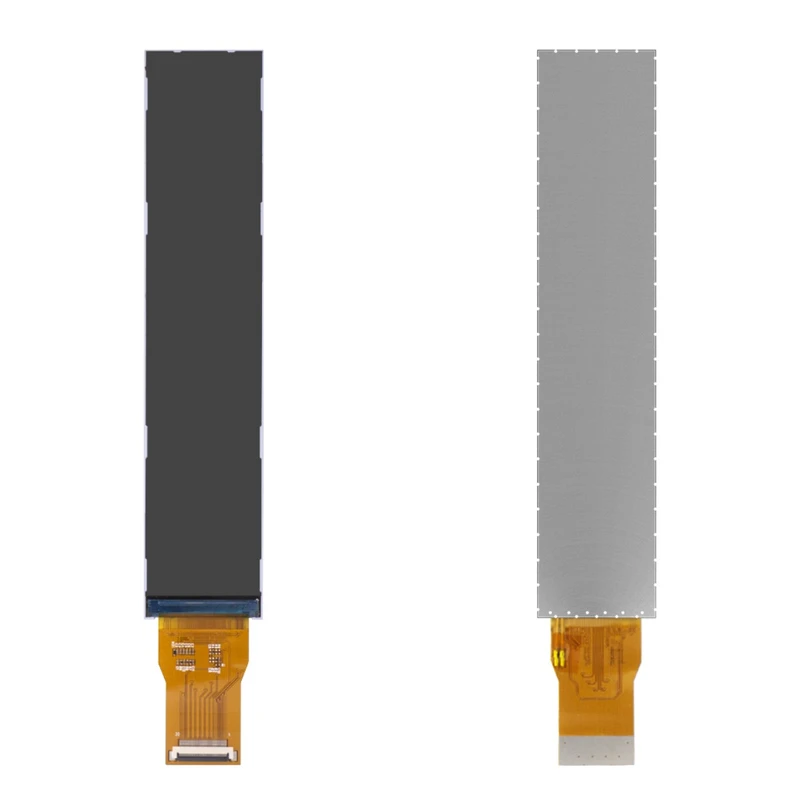

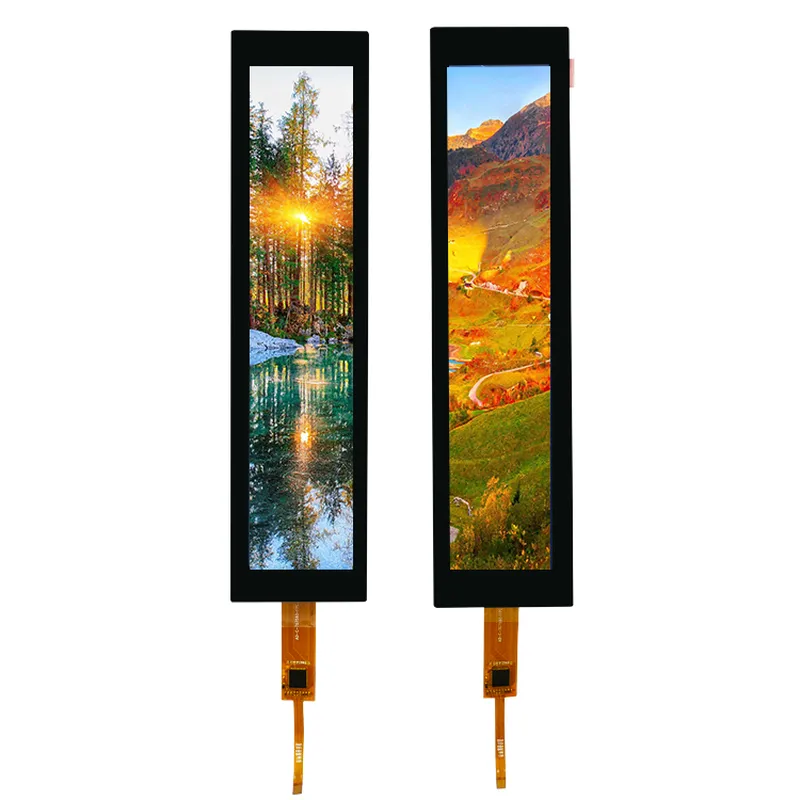

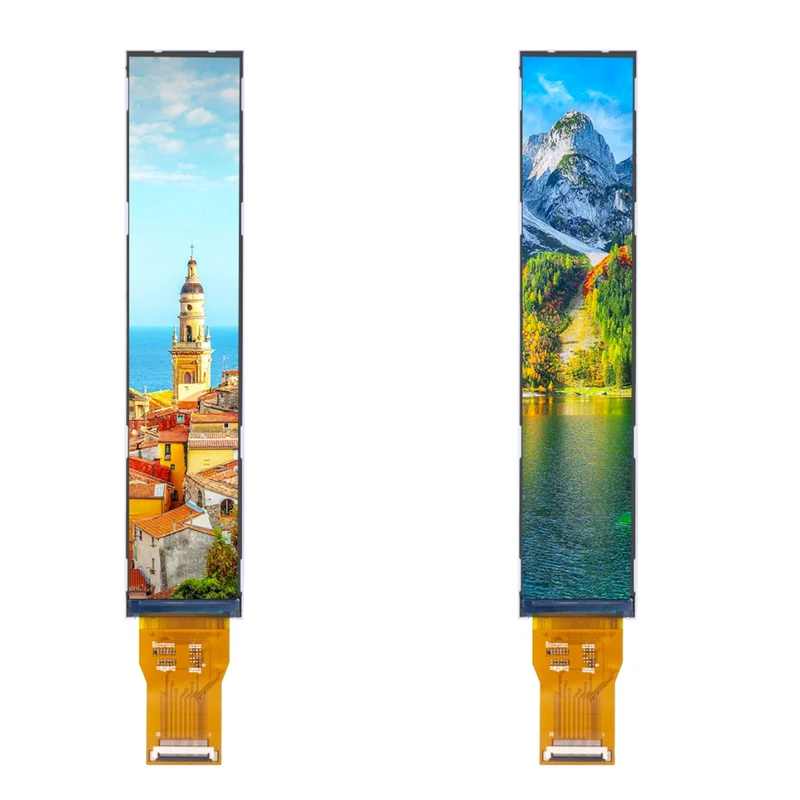

high contrast 7 inch touch screen customized color display module
inquiry
Description
LCD size
4.58 inch
Display Mode
Normally Black
Resolution
320(RGB)x960
Pixel Pitch
0.09525(H) × 0.09525(V)
Pixel Arrangement
RGB Vertical Stripe
Viewing direction
Free
Module outline dimension
41.57 (H)*118.8 (V)*2.5(D)
Interface
RGB
Backlight
White LED
LCD AA
36.77 (H)* 110.30 (V)
Driver IC
ST7701S
Operating Temp.
-20℃~ +70℃
Storage Temp.
-30℃~ +80℃
Colors
16.7M
