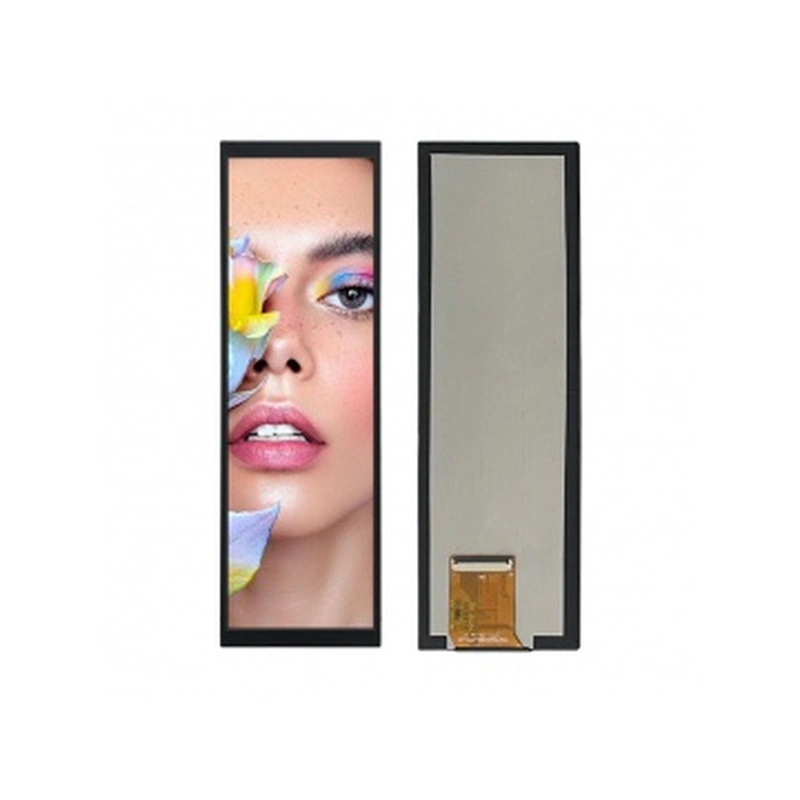

7.84 inch 400*1280 TFT bar LCD display highlight IPS display

7.84 inch 400*1280 TFT bar LCD display highlight IPS display wide temperature LCD screen motorcycle electric vehicle instrument display appliance display panel

Model No.: ZX784TFT01A


This display module ZX784TFT01A is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) without a capacitance touchscreen .This module is composed of a TFT LCD module,  a backlight unit. The resolution of a 7.84-inch contains 400(RGB)*1280 dots and can display up to 16.7M colors.


Application:

Electric vehicle, Range hood display screen, Vehicle display, Water heater display screen, Refrigerator display screen, Coffee Machine, etc



Description


Feature
Spec







Characteristics
Size
7.84 inch
Resolution
400*1280
Interface
MIPI 40PIN
Connect type
-
Color Depth
16.7M
Technology Type
-
Display Spec. Pixel pitch(mm)
-
Contrast ratio
Min800/Typ900
Display mode
Normally black, Transmissive
Brightness
min350/typ400
Surface Treatment
AG/lare
Viewing direction
85/85/85/85



Machanical
Gray Viewing Direction
Free
LCM (MM)
67.8*205.78*4.6
Active Area (mm)
59.4*190.08
With/without TSP
without
Operating temperature
-20 to +70℃
Storage temperature
-30 to +80℃
