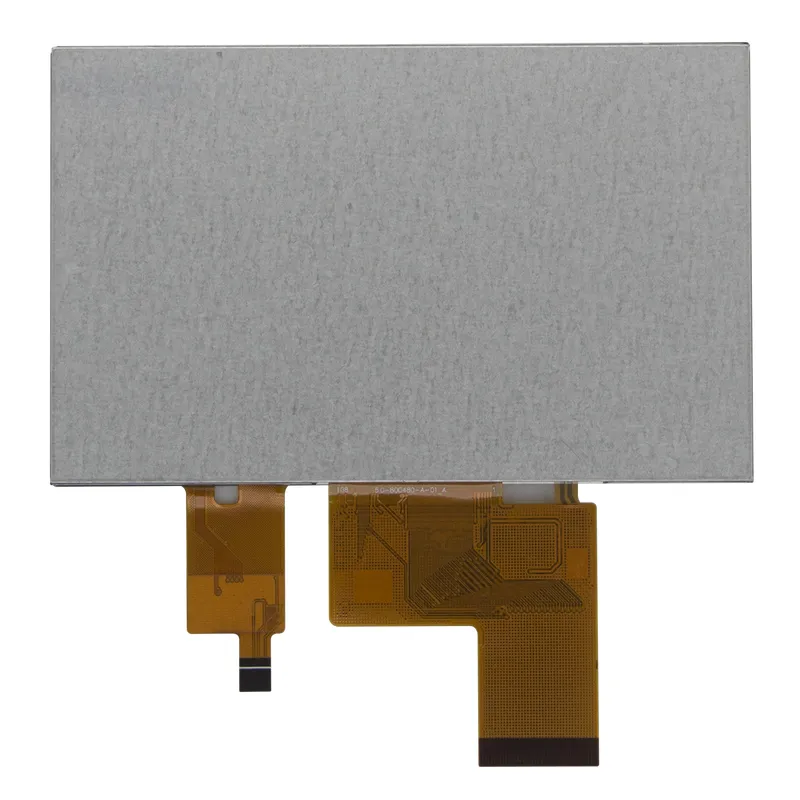

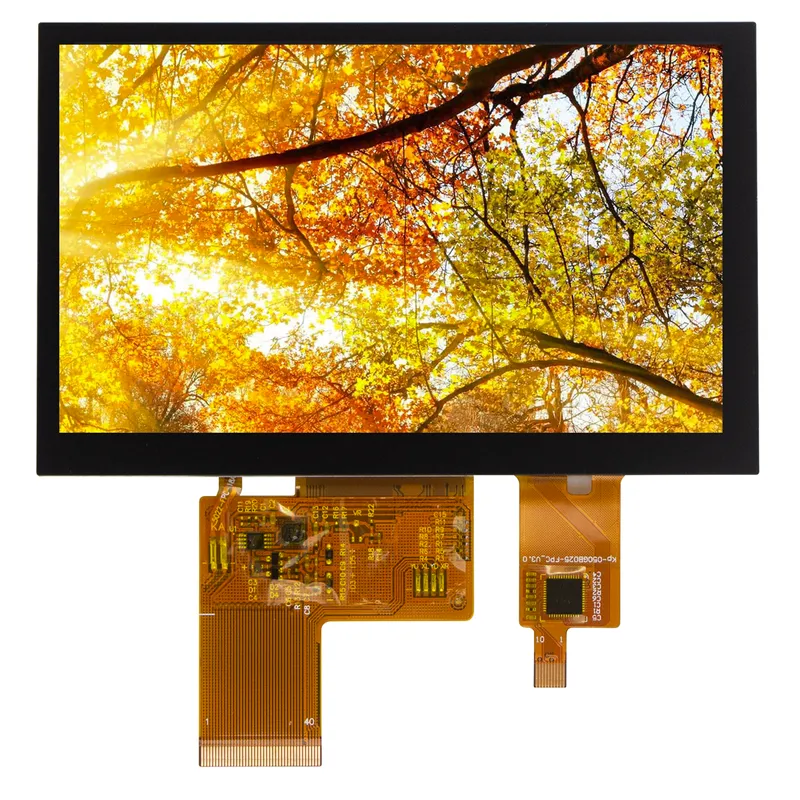

5“ inch TN TFT LCD Display 800x480 with touch panel

Model No.: ZX500TFT01B

This display module ZX500TFT01B is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) without a capacitance touchscreen .This module is composed of a TFT LCD module, a backlight unit. The resolution of a 4-inch contains 800(RGB)*480 dots and can display up to 16.7M colors.

inquiry

Description

	Feature	Spec
Characteristics	Size	5 inch
	Resolution	800*480
	Interface	RGB-24bit
	Connect type	Connector
	Color Depth	16.7M
	Technology Type	a-Si TFT
	Display Spec. Pixel pitch(mm)	0.135*0.135
	Pixel Configuration	R.G.B. Vertical Stripe
	Display mode	Normally white, Transmissive
	Driver IC	ILI5960+ILI6122
	CTP Driver IC	FT5306
	Viewing direction	12 O'clock
Machanical	Gray Viewing Direction	6 O'clock
	LCM (MM)	120.776.32.8
	Active Area (mm)	108*64.8
	With/without TSP	with
	Weight(g)	TBD
	LED Numbers	18 LEDs
