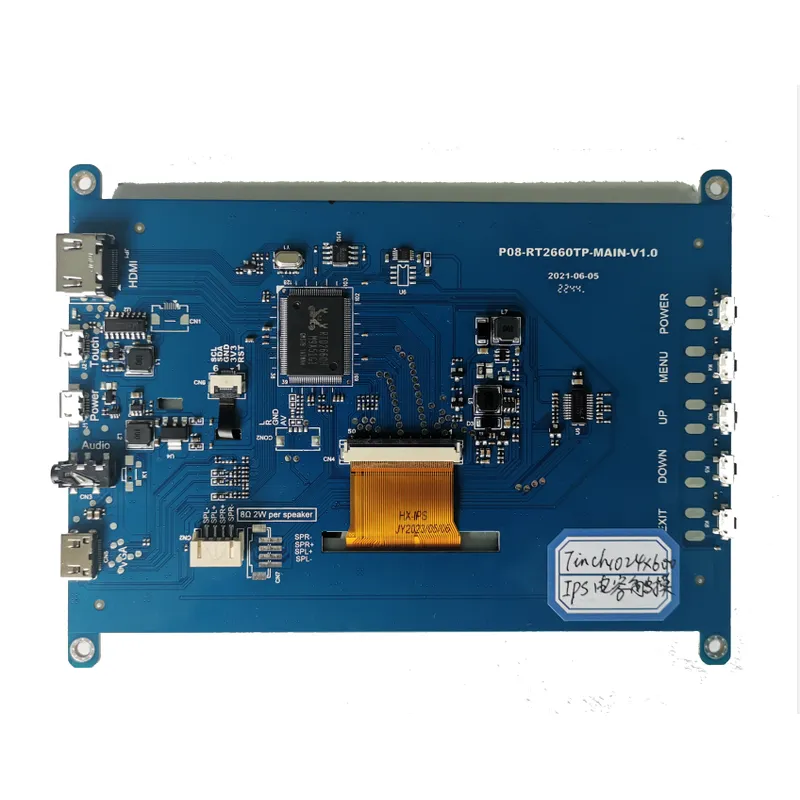

Model No.: ZX700TFTH01B
1.Scope of application
TTL:AT070TN92/CLAA070NQ02_XN/ZS070BH5044B3H7II etc, Universal standard TTL/50PIN
interface definition LCD screen.
2. Product function description
2.1 VGA, HDMI video signal input; 2.2, touch operation (TP)
2.3 Power input: MICRO_USB DC+5V, 2.4 Power amplifier speaker output: 8Ω/2W*2
2.5 Headphone output
2.6 Multi-function OSD operation
2.7 With remote control function (optional)
2.8 Automatic shutdown without signal
2.9 The VCOM voltage value can be adjusted according to the actual display screen
2.10 Adjustable according to the actual display backlight brightness (VBL)
3. Signal input standard
3.1 VGA: 800*480 800*600 1024*600(refresh rate60～75)
3.2 HDMI (Universal 1.2 version)
