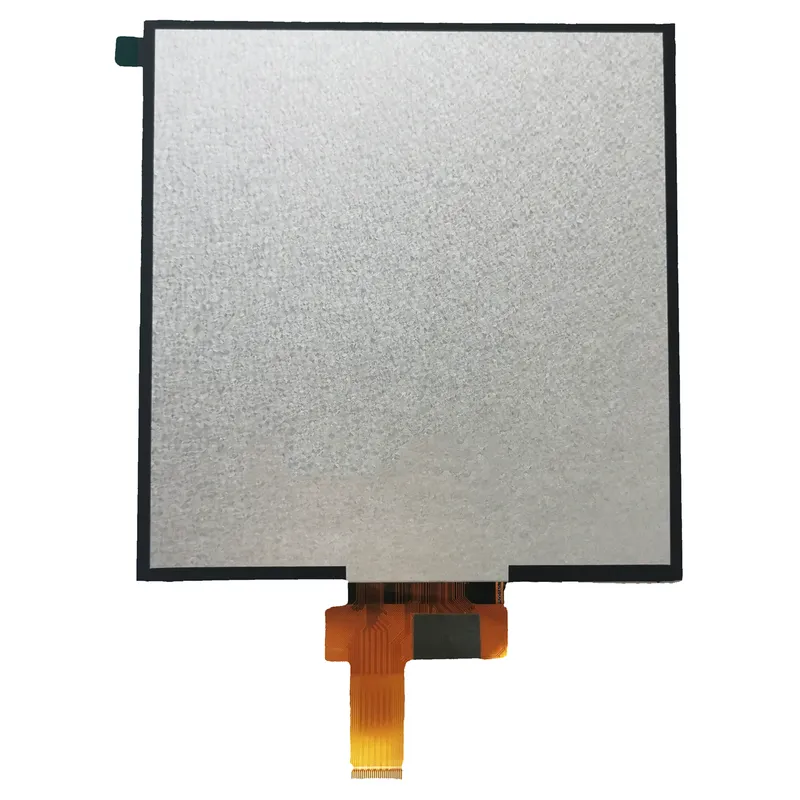

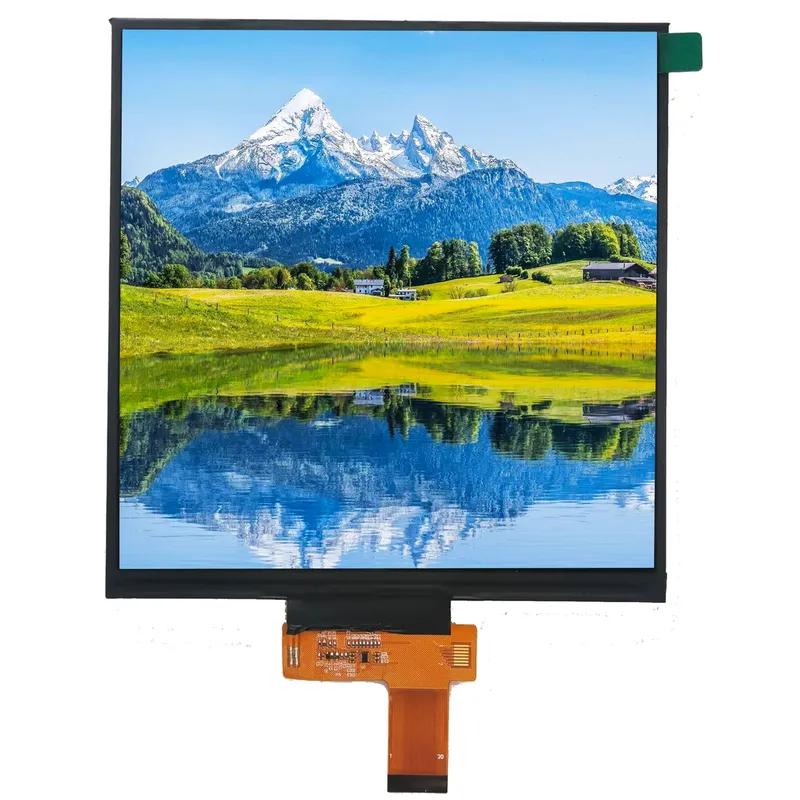

7.6“ inch square TFT LCD Display 800x800 MIPI interface

Model No.: ZX760TFT01A

This display module ZX760TFT01A is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) without a capacitance touchscreen .This module is composed of a TFT LCD module, a backlight unit. The resolution of a 7.6-inch contains 800(RGB)*800 dots and can display up to 16.7M colors.

inquiry

Description

	Feature	Spec
Characteristics	Size	7.6 inch
	Resolution	800*800
	Interface	MIPI
	Connect type	Connector
	Color Depth	16.7M
	Technology Type	a-Si TFT
	Display Spec. Pixel pitch(mm)	-
	Pixel Configuration	R.G.B. Vertical Stripe
	Display mode	Normally black, Transmissive
	Driver IC	-
	Contrast Ratio	-
	Luminance	-
Machanical	Gray Viewing Direction	Free
	LCM (MM)	142.56148.245.1
	Active Area (mm)	135.36*135.36
	With/without TSP	without
	Weight(g)	TBD


7.6“ inch square TFT LCD Display 800x800 MIPI interface

Description

send inquiry to us
