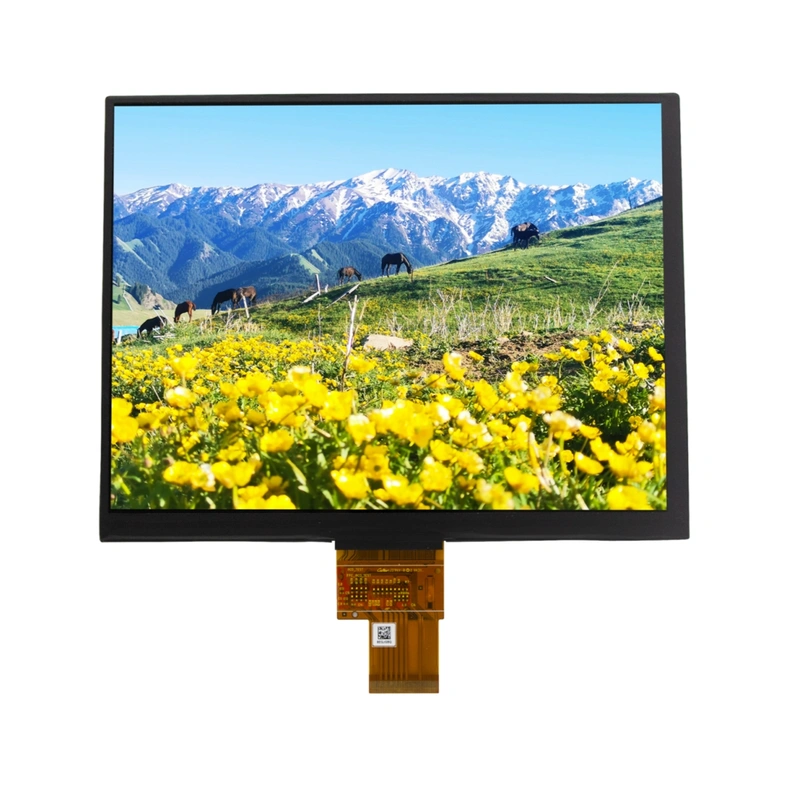

7.6“ inch square TFT LCD Display 800x800 MIPI interface

Model No.: ZX800TFTL01B

This display module ZX800TFTL01B is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) without a capacitance touchscreen .This module is composed of a TFT LCD module, a backlight unit. The resolution of a 8-inch contains 1024(RGB)*768 dots and can display up to 16.7M colors.

inquiry

Description

	Feature	Spec
Characteristics	Size	8 inch
	Resolution	1024*768
	Interface	LVDS
	Connect type	Connector
	Color Depth	16.7M
	Technology Type	a-Si TFT
	Display Spec. Pixel pitch(mm)	0.1583*0.1583
	Pixel Configuration	R.G.B. Vertical Stripe
	Display mode	Normally black, Transmissive
	Driver IC	-
	Contrast Ratio	-
	Luminance	250 nits
Machanical	Gray Viewing Direction	Free
	LCM (MM)	1741362.8
	Active Area (mm)	162.05*121.54
	With/without TSP	without
	Weight(g)	TBD

7.6“ inch square TFT LCD Display 800x800 MIPI interface

Description

send inquiry to us
