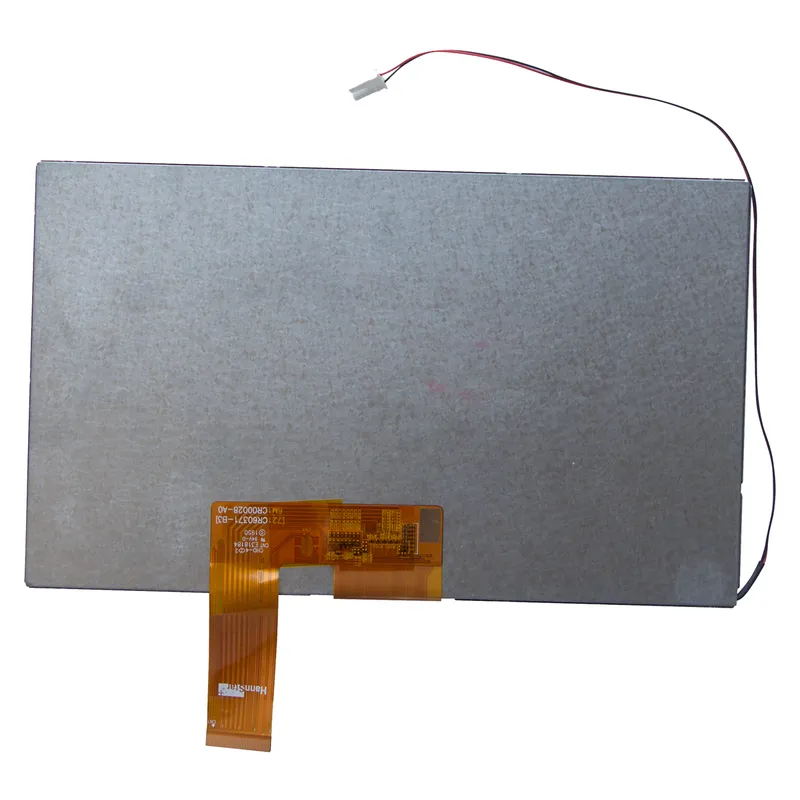

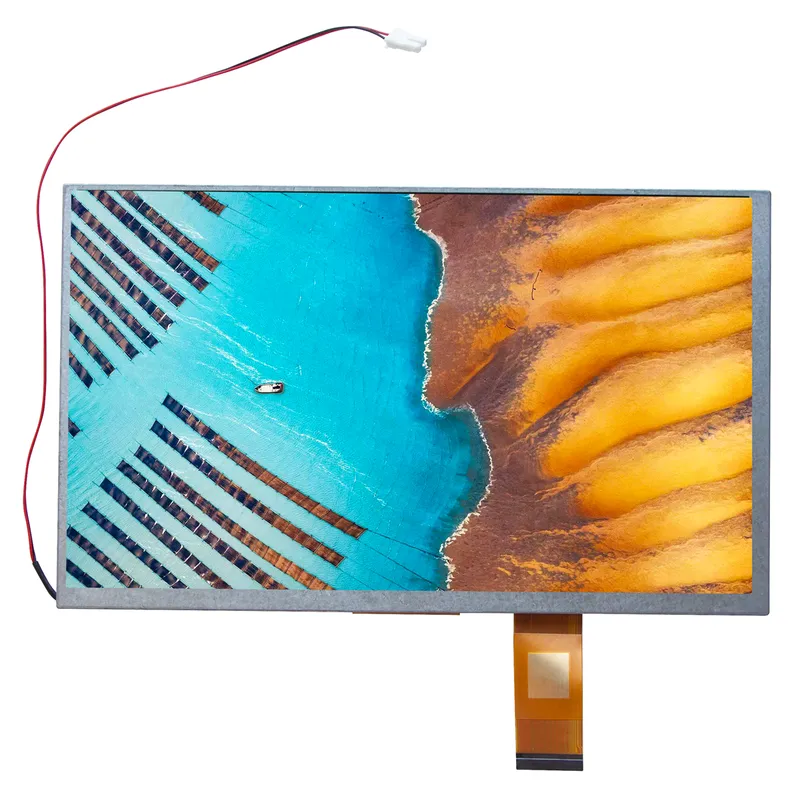

9“ inch square TFT LCD Display 1024x600 LVDS interface

Model No.: ZX900TFTL03B

This display module ZX900TFTL03B is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display(LCD) without a capacitance touchscreen .This module is composed of a TFT LCD module, a backlight unit. The resolution of a 9-inch contains 1024(RGB)*600 dots and can display up to 16.2M colors.

inquiry

Description

	Feature	Spec
Characteristics	Size	9inch
	Resolution	1024*600
	Interface	LVDS
	Connect type	Connector
	Color Depth	16.7M
	Technology Type	a-Si TFT
	Display Spec. Pixel pitch(mm)	0.1920*0.19025
	Pixel Configuration	R.G.B. Vertical Stripe
	Display mode	Normally black, Transmissive
	Driver IC	-
