Model No.: M104GNX1 R1

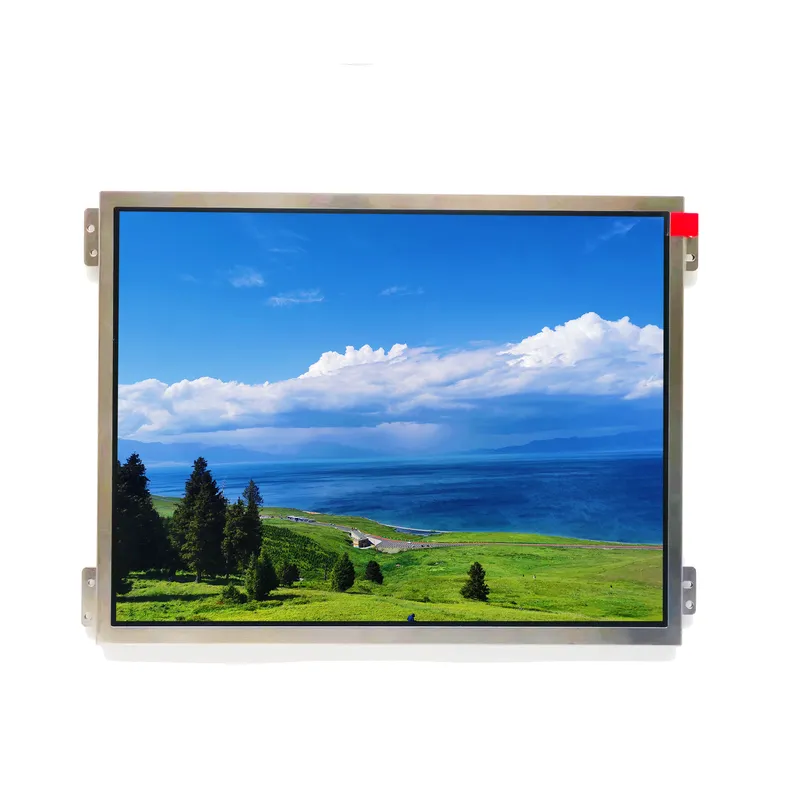

IVO 10.4 inch TFT LCD Pane M104GNX1 R1 with1024(RGB)×768 XGA resolution, brightness 350 cd/m². This TFT LCD display is wide working temperature is -20 ~ +70 (°C) and it's wide storage temperature is  -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.


Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.


Industrial IVO 10.4 Inch 1024x768 XGA TFT LCD Panel XGA Screen M104GNX1 R1 with 350nit, LVDS 20 pins and Controller board.


inquiry

Description

  • IVO M104GNX1 R1 Application Details


  • Feature
    Spec








    Characteristics
    Size
    7 inch
    Resolution
    1024*768
    Interface
    24-bit RGB
    Connect type
    Connector
    Support color
    262K/16.7M
    NTSC
    50 (Typ.)
    Display Spec. Pixel pitch(mm)
    0.2063*0.2063
    Pixel Configuration
    RGB
    Display mode
    Normally white
    Contrast Ratio
    900(Typ.)
    White Luminance
    350 (Typ.)
    Viewing angle
    6 O'clock



    Machanical
    Response Time
    16（Typ.)
    LCM (MM)
    236.0*176.9*5.70
    Active Area (mm)
    211.2*158.4
    With/without TSP
    without
    Weight(g)
    110g
    Surface Treatment
    AG
  • 尺寸.png
