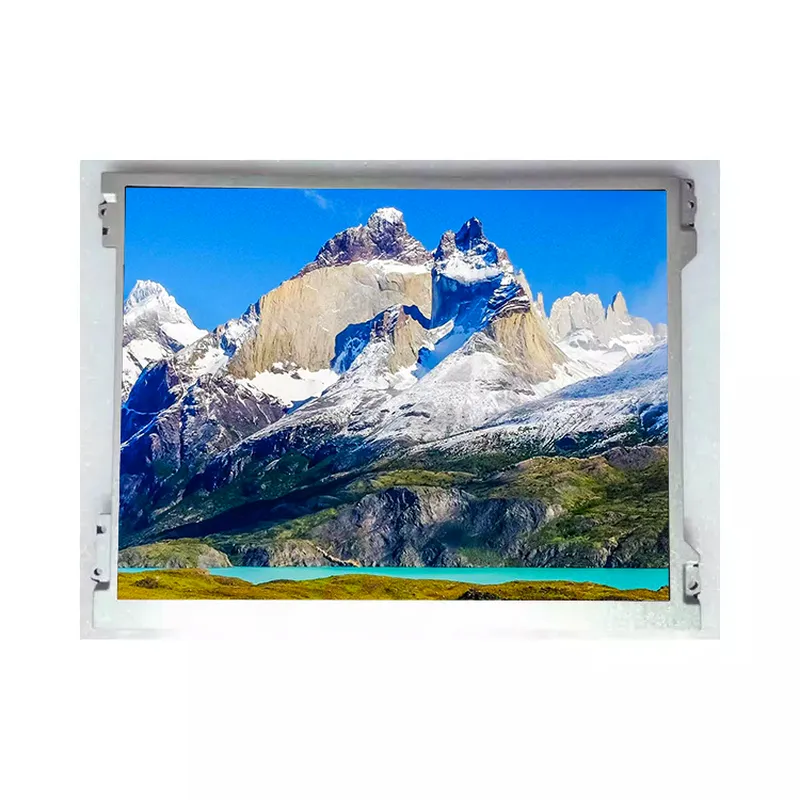

IVO 12.1 Inch 1024*768 XGA TFT LCD Panel display M121GNX2 R1 For Industry

Model No.: M121GNX2 R1


IVO 12.1 inch TFT LCD Panel M121GNX2 R1 with 1024(RGB)×768 XGA resolution, brightness 350 cd/m². This lcd display's wide working temperature is -20 ~ +70 (°C) and it's wide storage temperature is  -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.


Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.


Industrial IVO 12.1 Inch 1024x768 XGA TFT LCD Panel LVDS Display M121GNX2 R1 with 350nit, Touchscreen and Controller board.

inquiry

Description

  • Manufacturer

  • IVO

  • Model Name
  • M121GNX2 R1
  • Screen Size
  • 12.1 inch
  • Pixel Number
  • 1024(RGB)×768 , XGA
  • Active Area(mm)
  • 245.76 x 184.32 (H×V)
  • Outline(mm）
  • 279.0 x 209.0 x 9.0 (H×V×D)
  • Pixel Pitch(mm)
  • 0.2400 x 0.2400 (H×V)
  • Treatment
  • Anti-glare+3H
  • Luminance
  • 350 cd/m² (Typ.)
  • Contrast Ratio
  • 800 : 1 (Typ.) (TM)
  • Viewing Angle
  • 80/80/80/80(CR≥10) Left / Right/UP /Down
  • Response time
  • 16 (Typ.)(Tr/Td) ms
  • Display Mode
  • TN , Normally white , Transmissive
  • Color Depth
  • 262K/16.7M , 72% NTSC
  • Backlight
  • WLED , 30K hours , with LED Driver
  • Net Weight
  • 545g
  • Touchscreen
  • without
  • Signal Type/interface Type
  • LVDS (1 ch, 6/8-bit) , 20 pins
  • Voltage Supply
  • +3.3 V
  • Max. Ratings
  • Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
  • Package
  • IVO Original package;
    20 pcs/ctn
