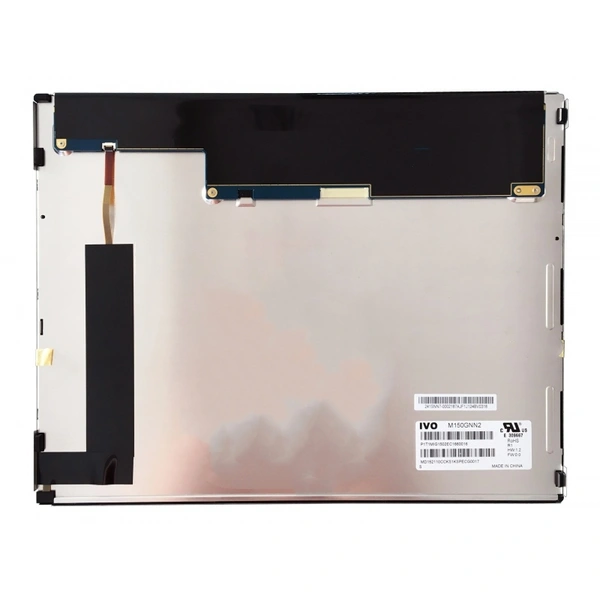

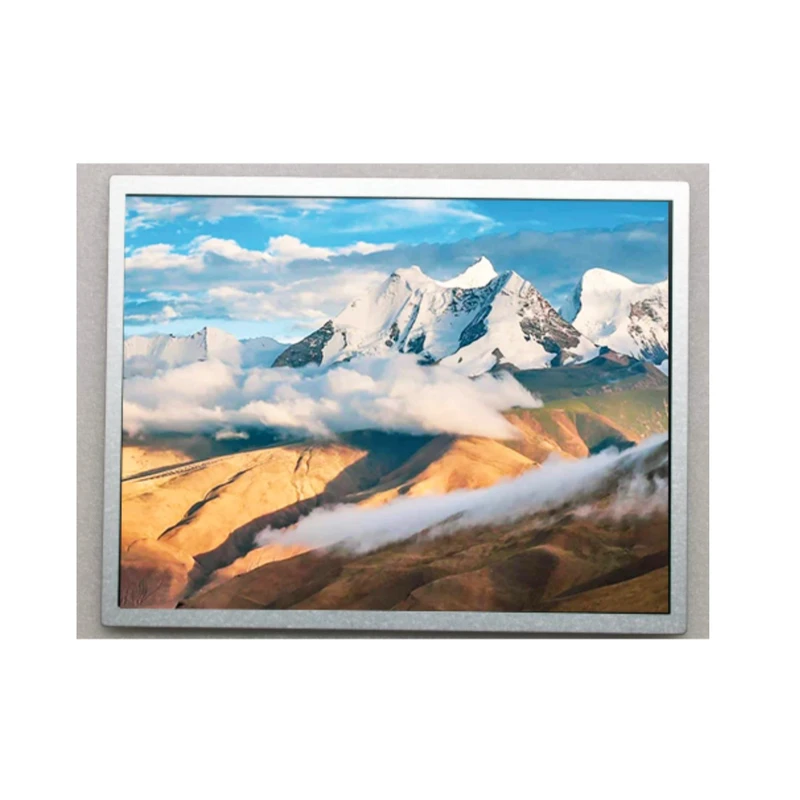

IVO 15 Inch 1024*768 XGA TFT LCD LVDS Panel M150GNN2 R0 500 nit

Model No.:M150GNN2 R0

15 inch tft lcd panel M150GNN2 R0 with 1024(RGB)x768 XGA resolution, brightness 500 cd/m². This lcd display is working temperature is -30 ~ +85 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
Industrial 15 Inch 1024x768 XGA Original IVO TFT LCD Panel LVDS LCD Display M150GNN2 R0 with 500nit, Driver Board And Wide Temperature range.

inquiry

Description

Manufacturer	IVO
Model Name	M150GNN2 R0
Screen Size	15 inch
Pixel Number	1024(RGB)×768 , XGA
Active Area(mm)	304.128 x 228.096 (H×V)
Outline(mm）	326.5 x 253.5 x 12.5 (H×V×D)
Pixel Pitch(mm)	0.297 x 0.297 (H×V)
Treatment	Anti-glare , Hard coating (3H)
Luminance	500 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80(CR≥10) Left / Right/UP /Down
Response time	25 (Typ.)(Tr/Td) ms
Display Mode	TN , Normally white , Transmissive
Color Depth	16.7M , 70% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	960g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 8-bit) , 20 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -30 ~ +85 (°C) Operating Temp.: -30 ~ +85 (°C)
Package	IVO Original package; 14 pcs/ctn
