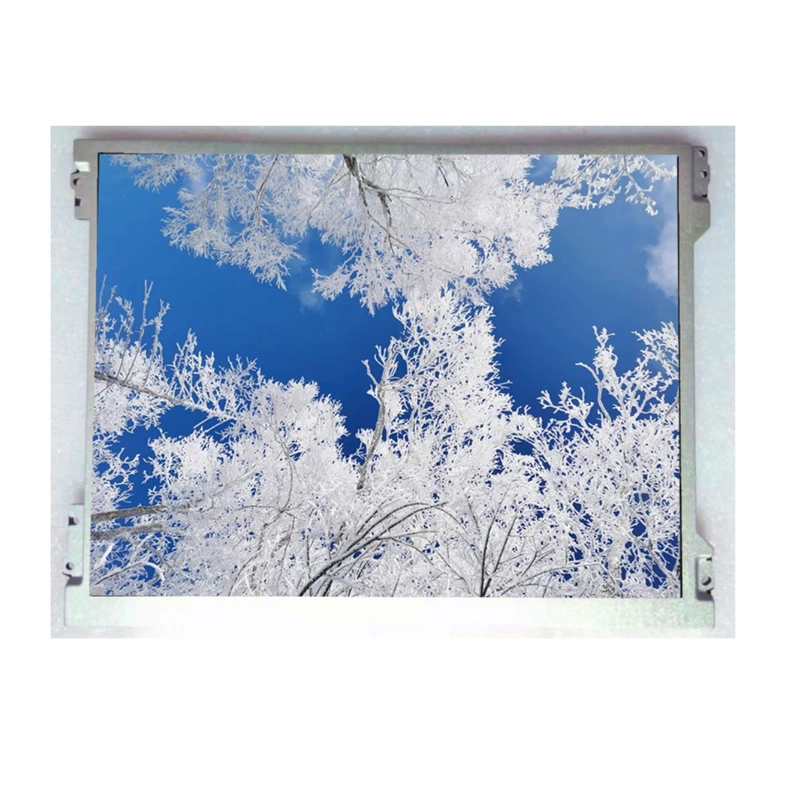

IVO 12.1 Inch 800*600 SVGA TFT LCD Panel M121GNS3 For Industry

Model No.: M121GNS3 R0

IVO 12.1 inch TFT LCD Panel M121GNS3 R0 with 800(RGB)×600 SVGA resolution, brightness 400 cd/m². This lcd display is wide working temperature, which is -20 ~ +70 (°C) and it's wide storage temperature is -30 ~ +85 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.

Industrial IVO 12.1 Inch 800x600 SVGA TFT LCD Panel Display M121GNS3 R0 with 400nit, LVDS Cables And Controller board.

inquiry

Description

Manufacturer	IVO
Model Name	M121GNS3 R0
Screen Size	12.1 inch
Pixel Number	800(RGB)×600 , SVGA
Active Area(mm)	246.0 x 184.5 (H×V)
Outline(mm）	276.0 x 209.0 x 9.1 (H×V×D)
Pixel Pitch(mm)	0.3075 x 0.3075 (H×V)
Treatment	Anti-glare,3H
Luminance	400 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	80/80/60/80(CR≥10) Left / Right/UP /Down
Response time	TBD (Typ.)(Tr/Td) ms
Display Mode	TN , Normally white , Transmissive
Color Depth	262K , 50% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	665g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6-bit) , 20 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C)
Package	IVO Original package; 30 pcs/ctn
