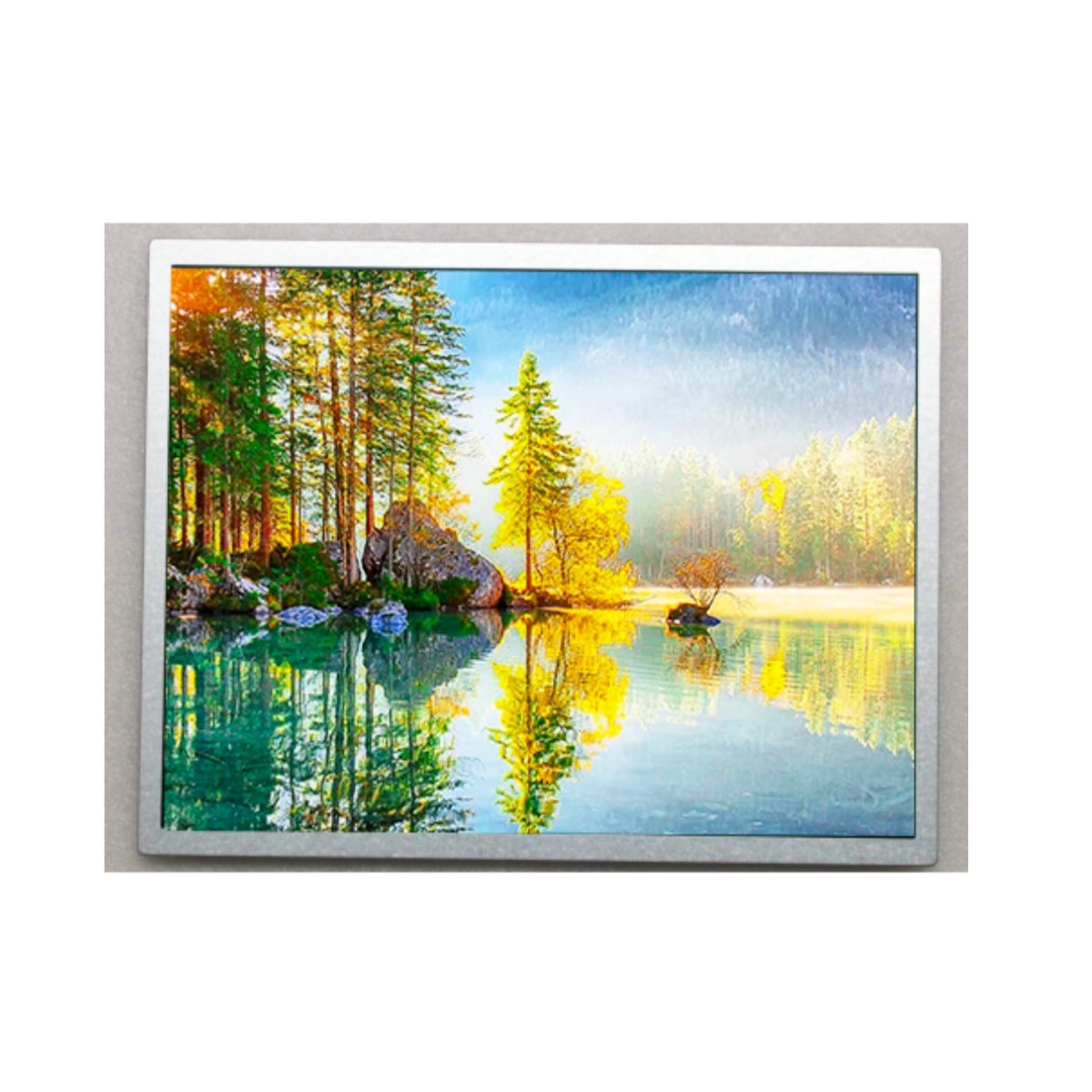

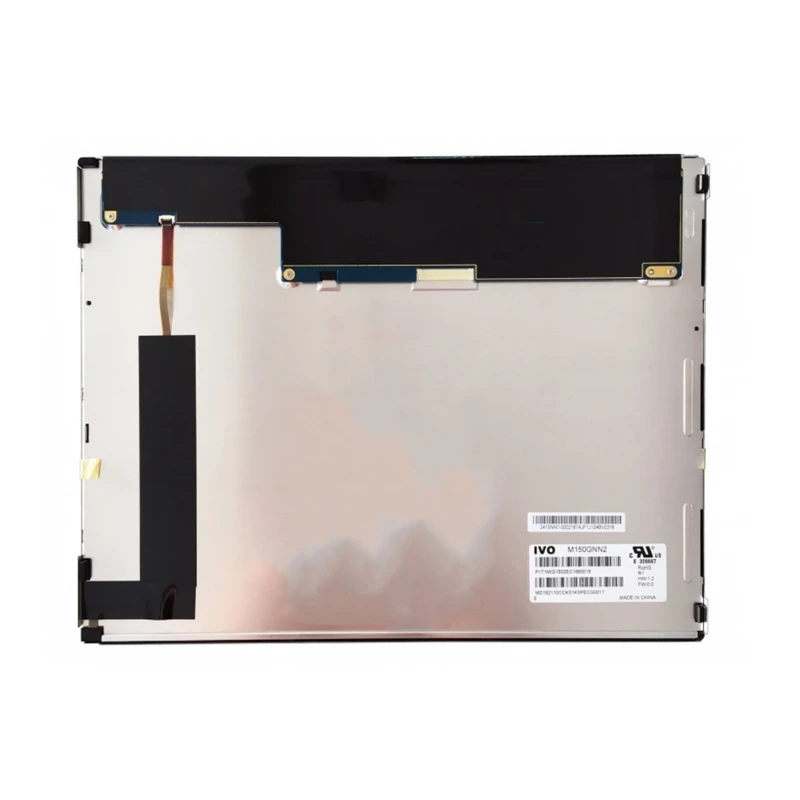

IVO 15 Inch 1024*768 XGA TFT LCD LVDS Panel M150GNN2 R1 For Industry

Model NO.: M150GNN2 R1


IVO 15 inch tft lcd panel M150GNN2 R1 with 1024(RGB)x768 XGA resolution, brightness 420 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.


Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.


Industrial 15 inch 1024x768 XGA LCD Panel Original IVO TFT LCD Screen M150GNN2 R1 With 420nits, LVDS cables and Controller board.
inquiry

Description

  • Manufacturer
  • IVO

  • Model Name

  • M150GNN2 R1

  • Screen Size

  • 15 inch

  • Pixel Number

  • 1024(RGB)×768 , XGA

  • Active Area(mm)

  • 304.13 x 228.10 (H×V)

  • Outline(mm）

  • 326.5 x 253.5x 12.5 (H×V×D)

  • Pixel Pitch(mm)

  • 0.297x 0.297 (H×V)

  • Treatment

  • Anti-glare, Hard-Coating (3H)

  • Luminance

  • 420 cd/m² (Typ.)

  • Contrast Ratio

  • 800 : 1 (Typ.) (TM)

  • Viewing Angle

  • 80/80/80/80 (CR≥10) Left / Right/UP /Down

  • Response time

  • 16 (Typ.)(Tr/Td) ms

  • Display Mode

  • TN , Normally white , Transmissive

  • Color Depth

  • 16.7M , 70% NTSC

  • Backlight

  • WLED , 50K hours , with LED Driver

  • Net Weight

  • 960g

  • Touchscreen

  • without

  • Signal Type/interface Type

  • LVDS (1 ch, 8-bit) , 20 pins

  • Voltage Supply

  • +3.3 V

  • Max. Ratings

  • Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)

  • Package

  • IVO Original package;
    14 pcs/ctn;
    weight : 18Kgs;
    size : 406(L) x 331(W) x 343(H) mm
