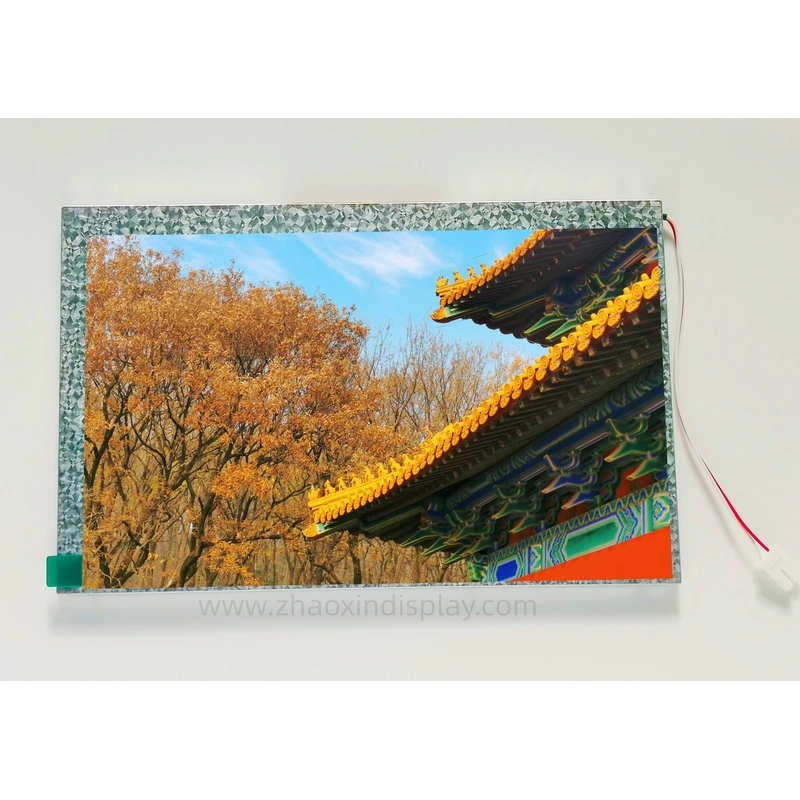

9.7inch touch screen LCD display module custom with 1024*768 RGB

Model No.: C097SNX1 R1

IVO 9.7 inch TFT LCD Pane C097SNX1 R1 with1024(RGB)×768 resolution, This lcd display's wide working temperature is -20 ~ +70 (°C) and it's wide storage temperature is -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.

inquiry

Description

Feature		Specification
Display Spec.	LCD size	9.7 inch
	Resolution(H*V)	1024(horizontal)*768(Vertical)
	Brightness	-
	Pixel agreement	R.G.B. Vertical Stripe
	Display Mode	Normally black
	Viewing Direction	all
	Pixel pitch (mm)	-
echanical Characteristics	OutlineDimensions (W x H x T) (mm)	205.81(Typ.) x 158.06(Typ.) x1.26
	Active Area(mm)	196.608*147.456
	Electrical Interface (Logic)	LVDS
	With /Without TSP	without
	Connector Type	Connector
	Input Voltage	3.3 (Typ.)
	colors	262K
Electrical Characteristics	NTSC	75%(Typ)
	Surface Treatment	HC/3H
	Driver IC	COGSSuggest NT510008+NT39212F

9.7inch touch screen LCD display module custom with 1024*768 RGB

Description

send inquiry to us
