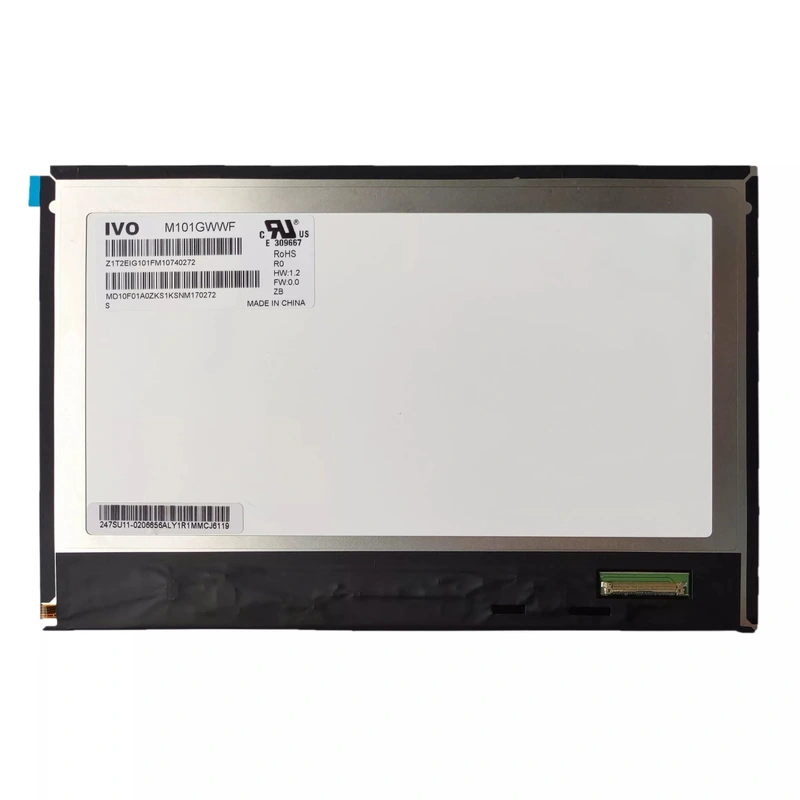

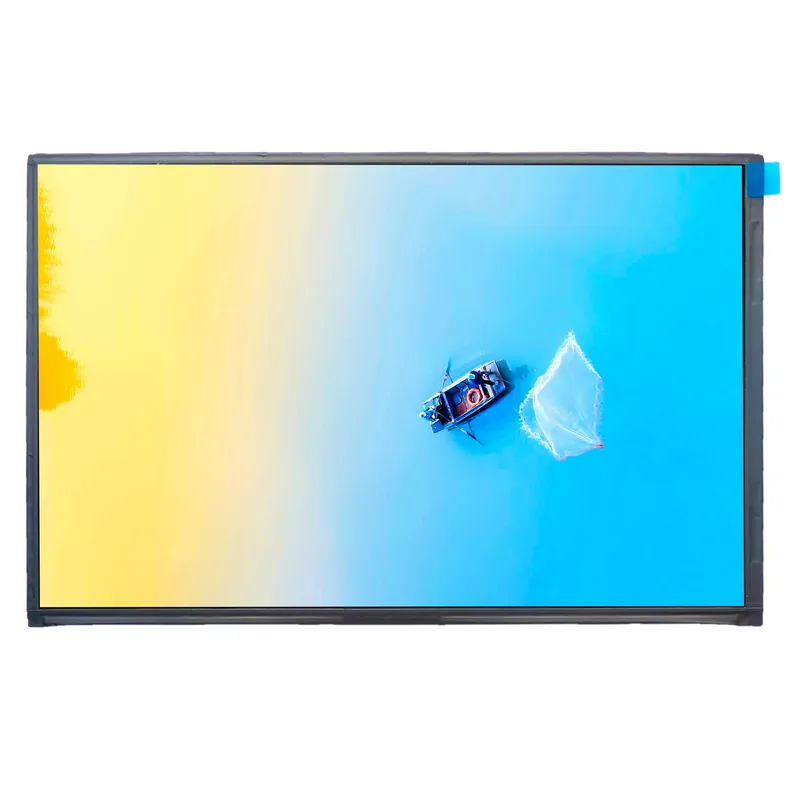

IVO 10.1 Inch 1280*800 TFT LCD Panel IPS display M101GWWF R0

Model Name

M101GWWF R0

Screen Size

10.1 inch

Pixel Number

1280(RGB)×800 , WXGA

Active Area(mm)

216.96 x 135.6 (H×V)

Outline(mm）

229.46 x 149.1 x 2.8 (H×V×D)

Pixel Pitch(mm)

0.1695 x 0.1695 (H×V)

Treatment

Luminance

350 cd/m² (Typ.)

Contrast Ratio

800 : 1 (Typ.) (TM)

Viewing Angle

85/85/85/85(CR≥10) Left / Right/UP /Down

Response time

25 (Typ.)(Tr/Td) ms

Display Mode

IPS , Normally black , Transmissive

Color Depth

16.7M , 45% NTSC

Backlight

WLED , 30K hours , with LED Driver

Net Weight

165g

Touchscreen

without

Signal Type/interface Type

LVDS (1 ch, 8-bit) , 40 pins

Voltage Supply

+3.3 V

Max. Ratings

Storage Temp.: -30 ~ +80 (°C)
Operating Temp.: -20 ~ +70 (°C)

Package

IVO Original package;
30 pcs/ctn
